Mate with SF1211,SF1212,SF1213,SF1221, SF1224

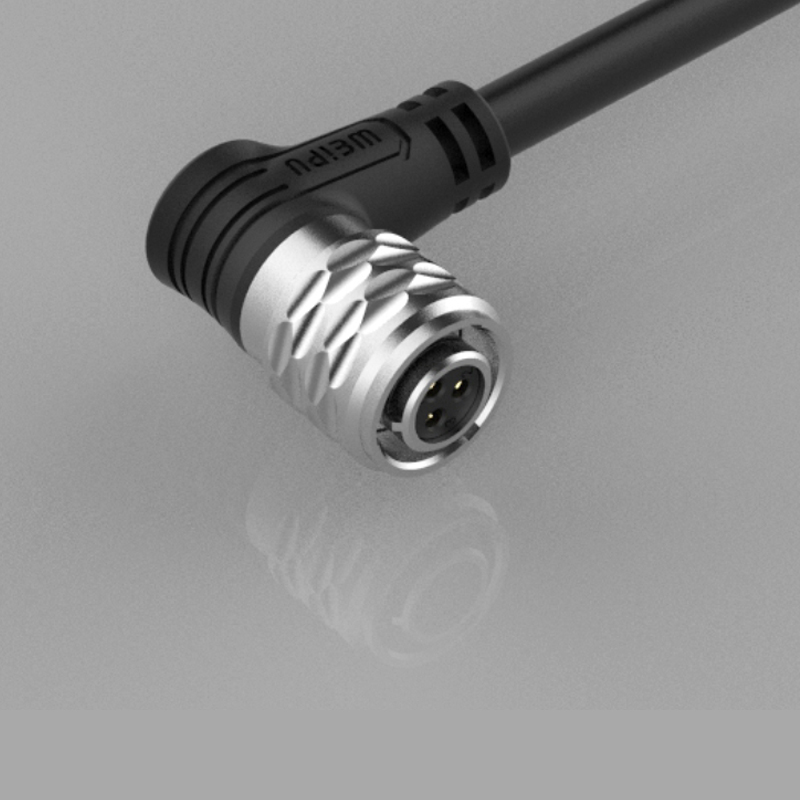

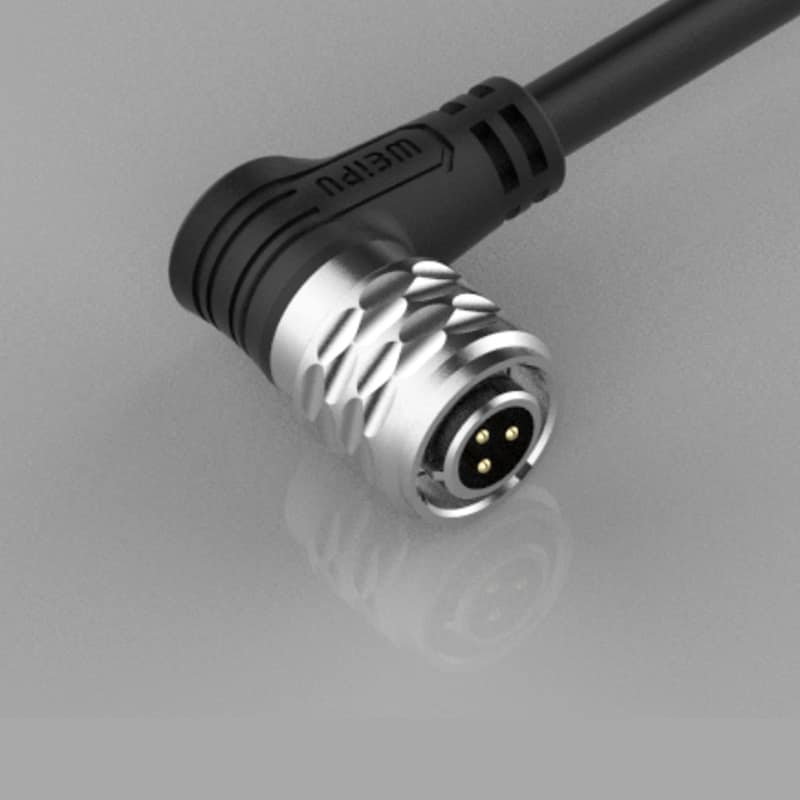

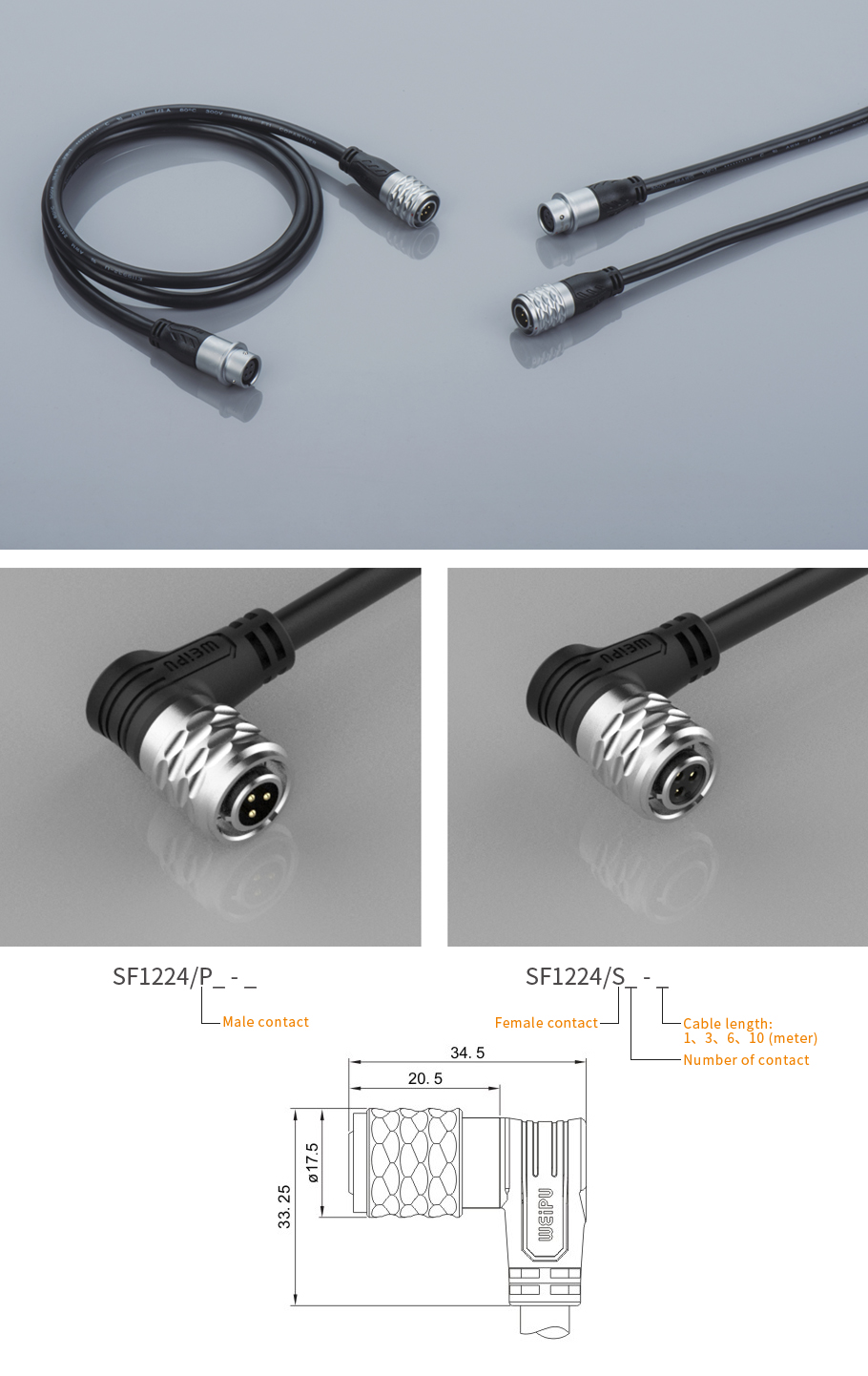

SF1224 Single-Ended Cordsets
Description
Material and spec
| Product model | Patchcord Connector |
| Coupling | Push-pull |
| Shell material | Brass,PVC fire resistance:UL94 V-0 |
| Insert material | PPS max temperature 260℃ |
| Contact material | Brass with gold plating |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -20°C~+ 85°C |
| Insulation resistance(MΩ) | 2000 |
