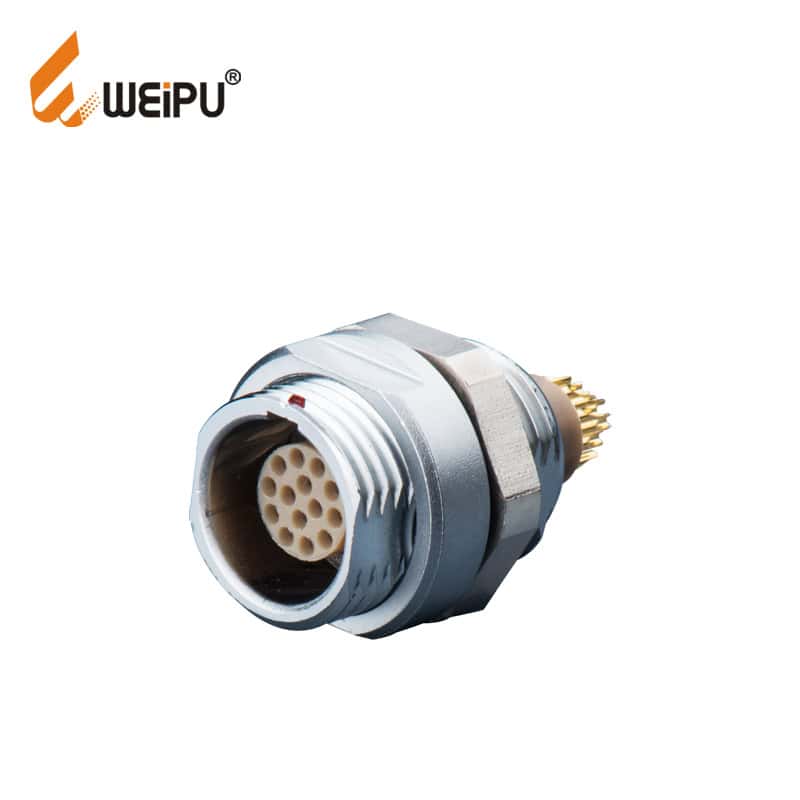

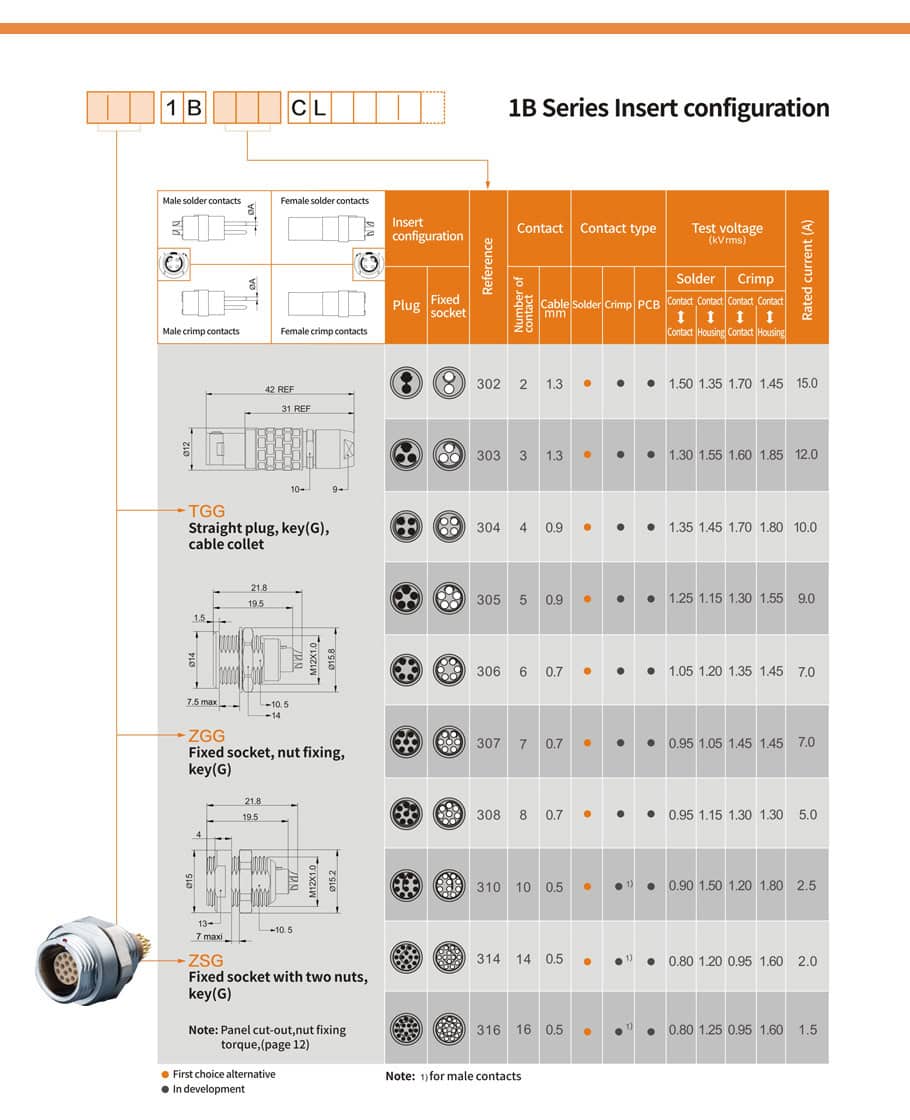

ZSG.1B Fixed socket with two nuts, key(G)

Precision connectors play a crucial role in modern industrial and technological fields. The B Series of Precision Connectors, known for their excellent performance and reliability, are widely used in various high-demand industries. Here is a detailed introduction to their technical parameters and applications.

Technical Parameters Explained

1. Temperature Range: -55℃ ~ +200℃ The B Series connectors can operate stably under extreme temperature conditions, from very cold to very hot environments. This makes them suitable for applications requiring reliable performance in harsh environments, such as aerospace and industrial automation.
2. Mating Cycles: >5000 times With a mating cycle exceeding 5000 times, the B Series connectors demonstrate high durability and reliability, capable of withstanding frequent connections and disconnections. This is ideal for applications requiring regular replacement or maintenance, such as testing equipment and medical devices.
3. Insulator Material Although not specified, the insulator material is typically high-performance engineering plastic, offering excellent electrical insulation and mechanical strength. This ensures the reliability and safety of the connectors in various application environments.
4. Contact Material: Copper Alloy with Gold Plating Contacts made of copper alloy with gold plating provide excellent conductivity and resistance to oxidation, ensuring low signal loss and long-term stability. This material is widely used in fields requiring high-reliability signal transmission, such as communication equipment and high-precision electronic instruments.
5. Shell Material: Brass with Chrome Plating The brass shell with chrome plating offers high strength and corrosion resistance, ensuring long-term durability in harsh environments. This material combination is suitable for applications requiring mechanical strength and corrosion resistance, such as outdoor equipment and industrial machinery.
6. Insulation Resistance: ≥100MΩ High insulation resistance ensures no leakage under high voltage conditions, providing excellent electrical insulation performance. This characteristic makes the B Series connectors suitable for high-voltage applications and scenarios requiring high insulation, such as power equipment and high-voltage testing instruments.
7. Protection Rating: IP50  Ideal for indoor industrial controls, measurement equipment, and data communications where protection against dust and moderate moisture is required.
8. Shielding Effectiveness: at 10MHz >75dB / at 1GHz >40dB High shielding effectiveness means the connectors can effectively block electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal integrity and stability. This feature is crucial for communication equipment and broadcast devices.
9. Salt Spray Test: >144 hours Passing a salt spray test of over 144 hours indicates the connectors have excellent corrosion resistance, suitable for high-corrosion environments such as marine engineering and coastal equipment.

Applications and Advantages

Industrial Automation

The B Series connectors are extensively used in industrial automation. Their high durability and broad temperature range ensure reliable operation in complex industrial environments, connecting sensors, controllers, and actuators to promote efficient automation control.

Aerospace

In the aerospace sector, the B Series connectors’ resistance to extreme temperatures and high insulation resistance are particularly important. These characteristics ensure stability and safety in extreme conditions, making them suitable for critical connections in aircraft navigation systems, communication devices, and control systems.

Communication Equipment

The B Series connectors excel in communication equipment, with high shielding effectiveness and gold-plated contacts ensuring high-quality signal transmission. These connectors are widely used in base stations, routers, and switches requiring high-speed data transmission.

Medical Devices

The B Series connectors are favored in medical devices for their high reliability and durability. They are used in monitoring equipment, diagnostic devices, and surgical instruments, ensuring safe and stable operation in various medical environments.

Marine Engineering

In marine engineering, the B Series connectors offer significant advantages. Their excellent corrosion resistance and high ingress protection ensure long-term use in high salt spray and humid environments, making them ideal for ship communication, navigation systems, and marine monitoring equipment.

Other Applications

Additionally, the B Series connectors are used in railway and subway systems, security systems, test and measurement equipment, energy and power devices, and high-end home appliances, showcasing their versatility and superior performance.

Weipu B Series precision connectors are the epitome of high performance, reliability, and versatility. Designed to meet the demanding needs of various high-tech industries, these connectors ensure seamless connectivity and exceptional performance. Whether you are in the medical, aerospace, telecommunications, or industrial automation sector, Weipu B Series precision connectors provide the reliable solutions you need.

For more information on our B Series precision connectors or to discuss your specific requirements, please visit our website or contact our customer support team. Experience the excellence of Weipu precision connectors and elevate your connectivity solutions to new heights.

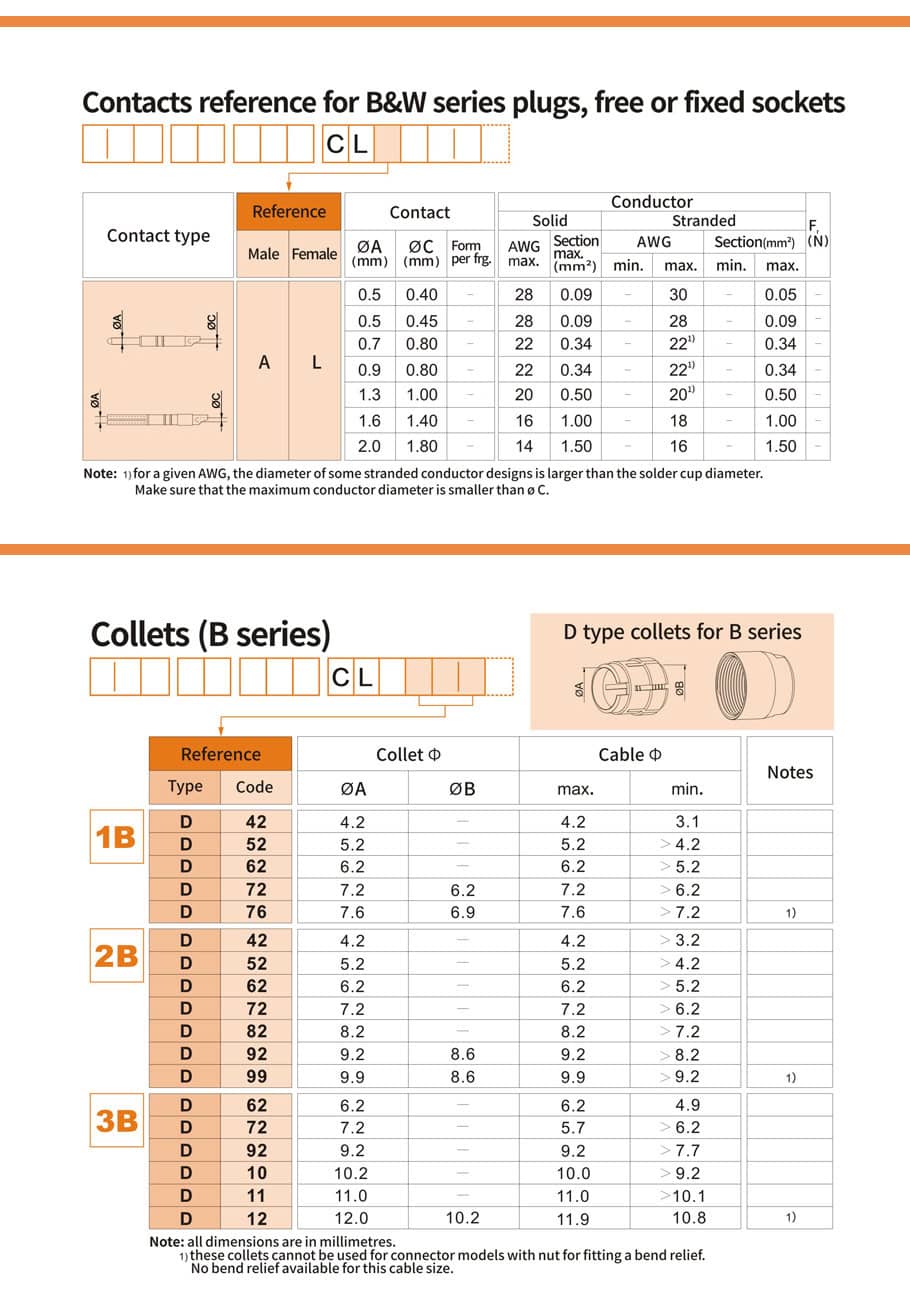

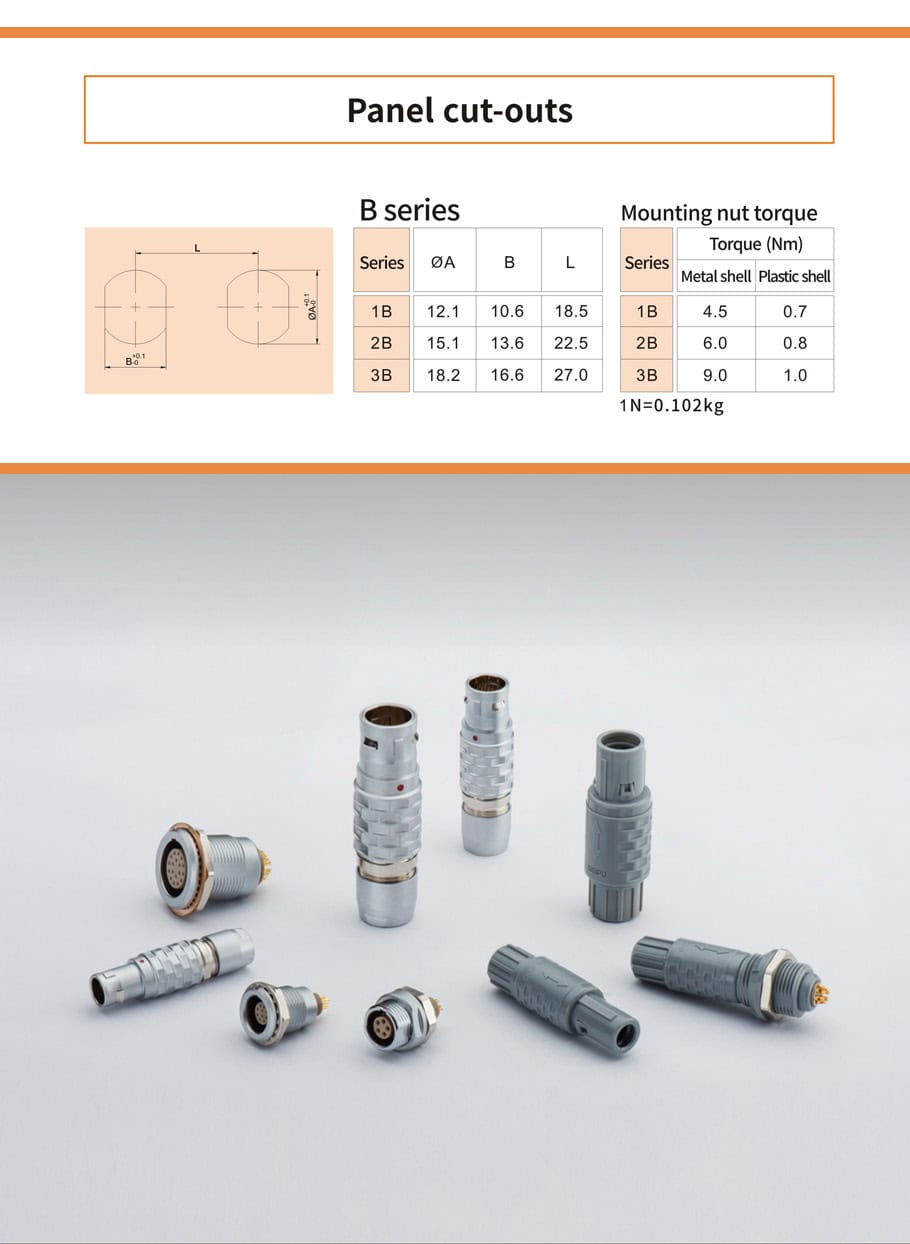

Precision Connector Selection Catalog V202405-1
