- Temperature Range: -50℃ to +200℃
- Coupling: Push-pull mechanism ensures secure and quick connections
- Mating Cycles: Over 1000 cycles, offering high durability
- Insulation Material: PEEK for superior electrical insulation and mechanical strength
- Contact Material: Gold-plated brass for excellent conductivity and oxidation resistance
Weipu P Series Precision Connectors provide reliable performance and high durability for demanding applications in industrial automation, aerospace, communication equipment, medical devices, and marine engineering. Designed to withstand extreme conditions, these connectors ensure stable and efficient connectivity in any environment.

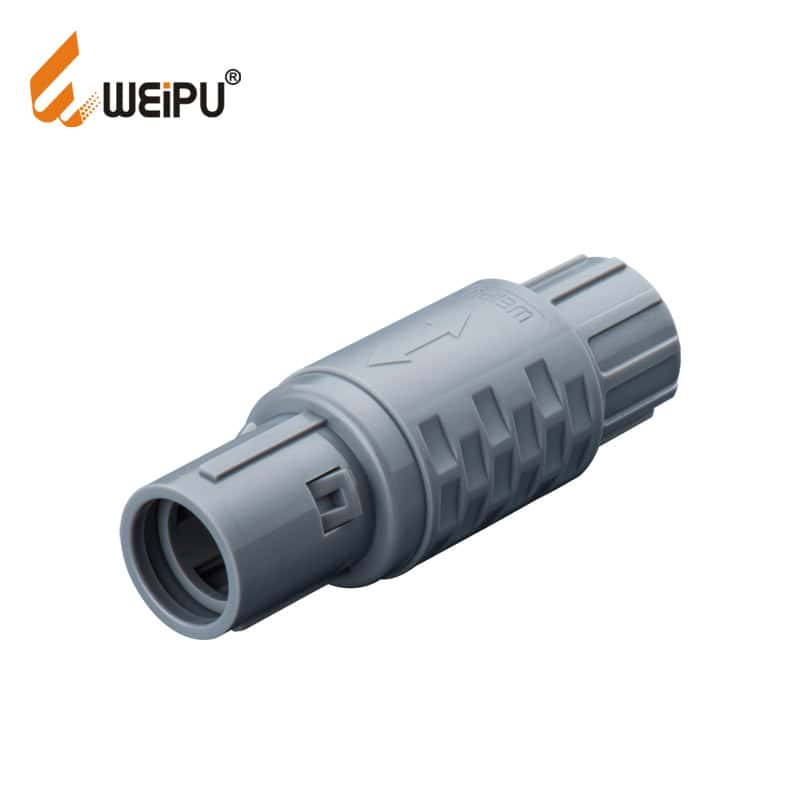

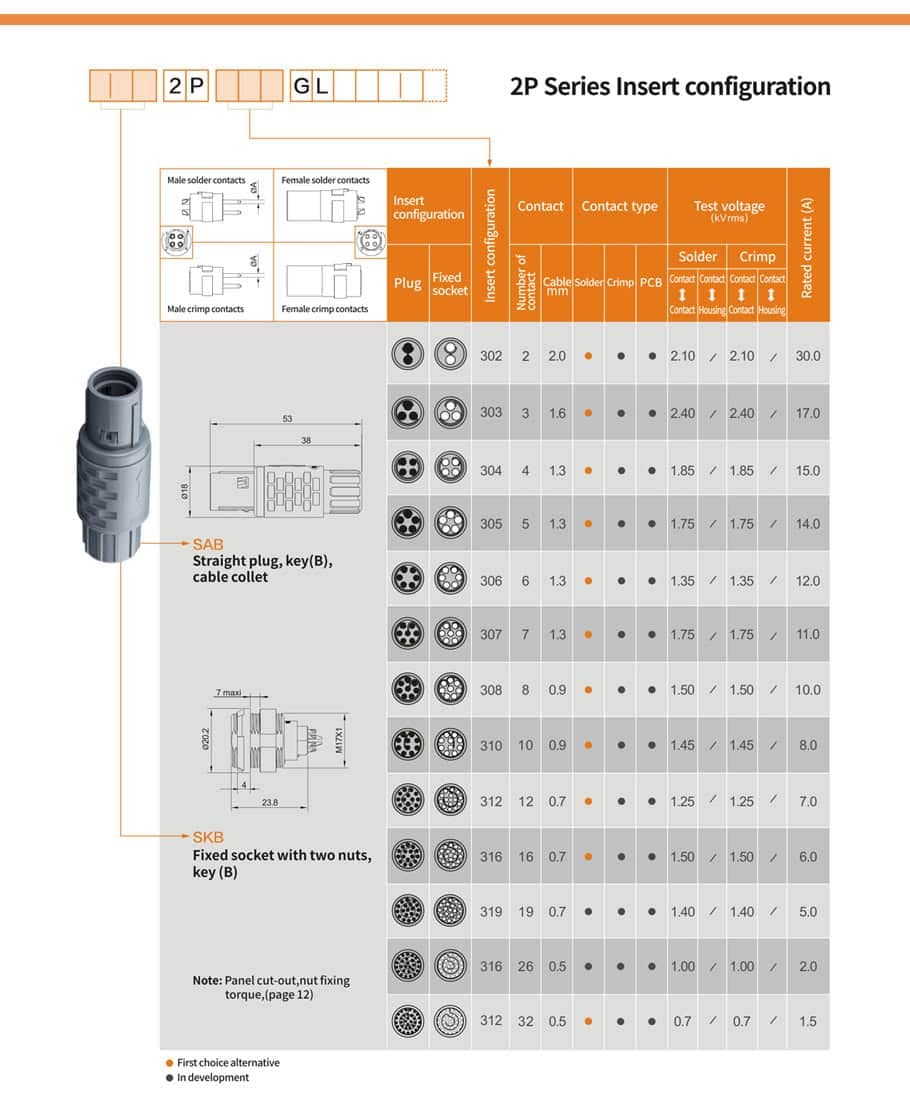

SAB.2P Straight plug, key(B), cable collet
Description
| Material and spec | |
| Temperature Range | -50℃ to +200℃ |
| Coupling | Push-pull |
| Mating Cycles | >1000 times |
| Insulation Material | PEEK |
| Insulator | Brass with gold plating |
| Shell material | PSU |
| Insulation Resistance | ≥100MΩ |
| Protection Level | IP50 |
| Collet cut | PSU |

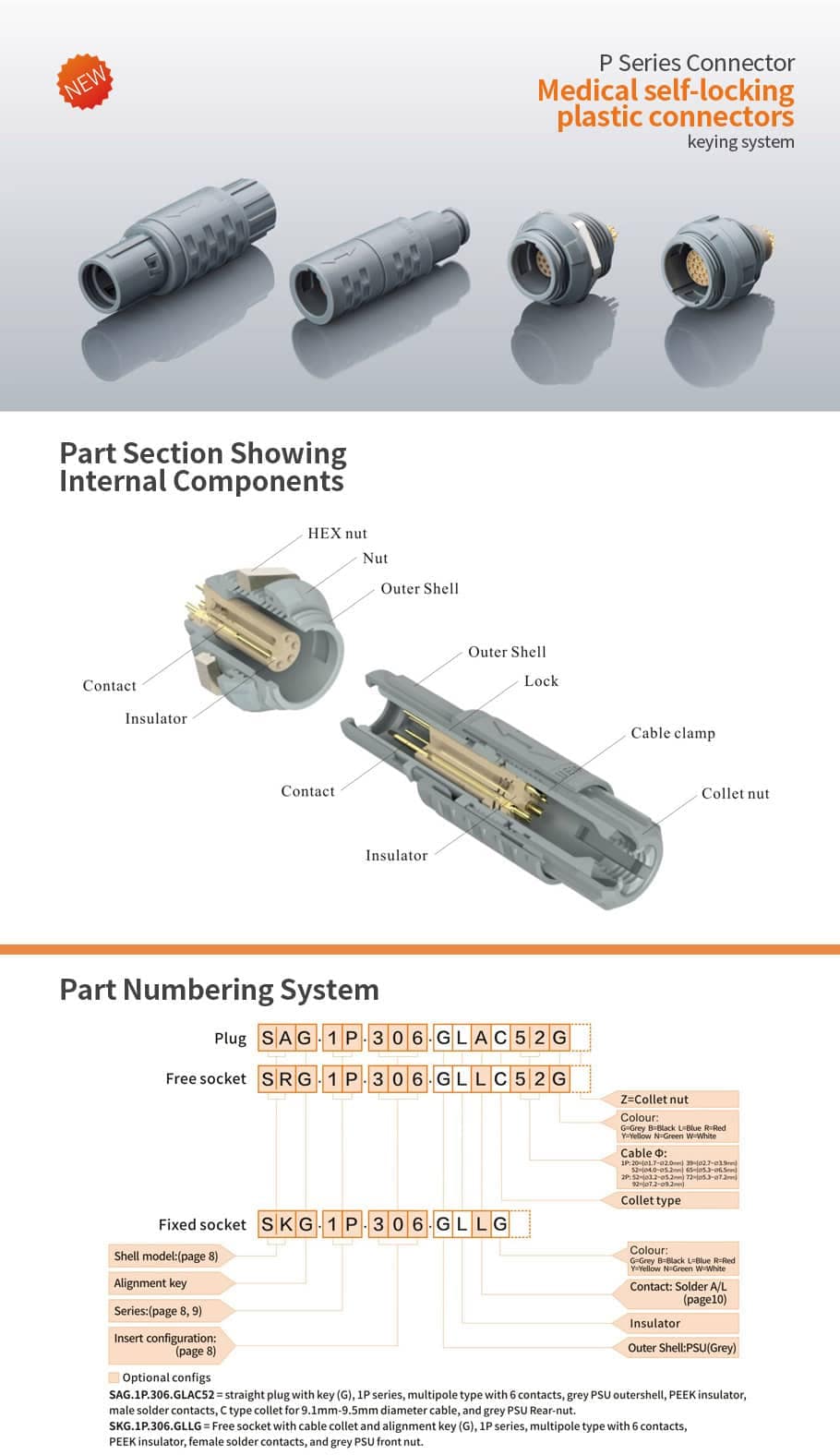

SAG.1P.306.GLAc52=straight plug with key (G), 1P series, multipole type with 6 contacts, grey PsU outershell, PEEK insulator,male solder contacts,C type collet for9.1mm-9.5mm diameter cable, and grey PSU Rear-nut.
SKG.1P.306.GLLG = Free socket with cable collet and alignment key (G), 1P series, multipole type with 6 contacts,PEEKinsulator,female solder contacts,and grey PSU front nut.
Precision connectors are vital components in many advanced industrial and technological fields. The P Series of Weipu Precision Connectors are designed to offer exceptional performance and reliability. This article provides a comprehensive overview of the P Series’ technical specifications and their various applications.
Technical Parameters Explained
- Temperature Range: -50℃ ~ +200℃ The P Series connectors are engineered to perform reliably across a wide temperature spectrum, from extremely cold to very hot environments. This makes them ideal for applications in harsh conditions, such as aerospace, industrial automation, and outdoor equipment.
- Coupling: Push-Pull The push-pull coupling mechanism ensures a secure connection and easy disconnection. This design is particularly beneficial in environments where quick and reliable connections are crucial, such as in medical devices and testing equipment.
- Mating Cycles: >1000 times With a durability rating of over 1000 mating cycles, the P Series connectors are built to withstand frequent connections and disconnections. This high durability is essential for applications requiring regular maintenance or replacement.
- Insulation Material: PEEK The insulators in the P Series connectors are made from PEEK (Polyether Ether Ketone), a high-performance engineering plastic known for its excellent electrical insulation, mechanical strength, and resistance to chemicals and high temperatures. This ensures the reliability and safety of the connectors in various demanding applications.
- Contact Material: Brass with Gold Plating Contacts made of brass with gold plating provide superior conductivity and resistance to oxidation, ensuring low signal loss and long-term stability. This material is commonly used in fields requiring high-reliability signal transmission, such as communication equipment and high-precision electronic instruments.
Applications and Advantages
- Industrial Automation The P Series connectors are widely used in industrial automation. Their high durability and broad temperature range ensure reliable operation in complex industrial environments, connecting sensors, controllers, and actuators to promote efficient automation control.
- Aerospace In the aerospace sector, the P Series connectors’ resistance to extreme temperatures and high insulation resistance are particularly important. These characteristics ensure stability and safety in extreme conditions, making them suitable for critical connections in aircraft navigation systems, communication devices, and control systems.
- Communication Equipment The P Series connectors excel in communication equipment, with gold-plated contacts ensuring high-quality signal transmission. These connectors are widely used in base stations, routers, and switches requiring high-speed data transmission.
- Medical Devices The P Series connectors are favored in medical devices for their high reliability and durability. They are used in monitoring equipment, diagnostic devices, and surgical instruments, ensuring safe and stable operation in various medical environments.
- Marine Engineering In marine engineering, the P Series connectors offer significant advantages. Their excellent corrosion resistance and high ingress protection ensure long-term use in high salt spray and humid environments, making them ideal for ship communication, navigation systems, and marine monitoring equipment.
- Other Applications Additionally, the P Series connectors are used in railway and subway systems, security systems, test and measurement equipment, energy and power devices, and high-end home appliances, showcasing their versatility and superior performance.
Conclusion
Weipu P Series Precision Connectors represent the pinnacle of high performance, reliability, and versatility. Designed to meet the demanding needs of various high-tech industries, these connectors ensure seamless connectivity and exceptional performance. Whether you are in the medical, aerospace, telecommunications, or industrial automation sector, Weipu P Series Precision Connectors provide the reliable solutions you need.
For more information on our P Series Precision Connectors or to discuss your specific requirements, please visit our website or contact our customer support team. Experience the excellence of Weipu Precision Connectors and elevate your connectivity solutions to new heights.
