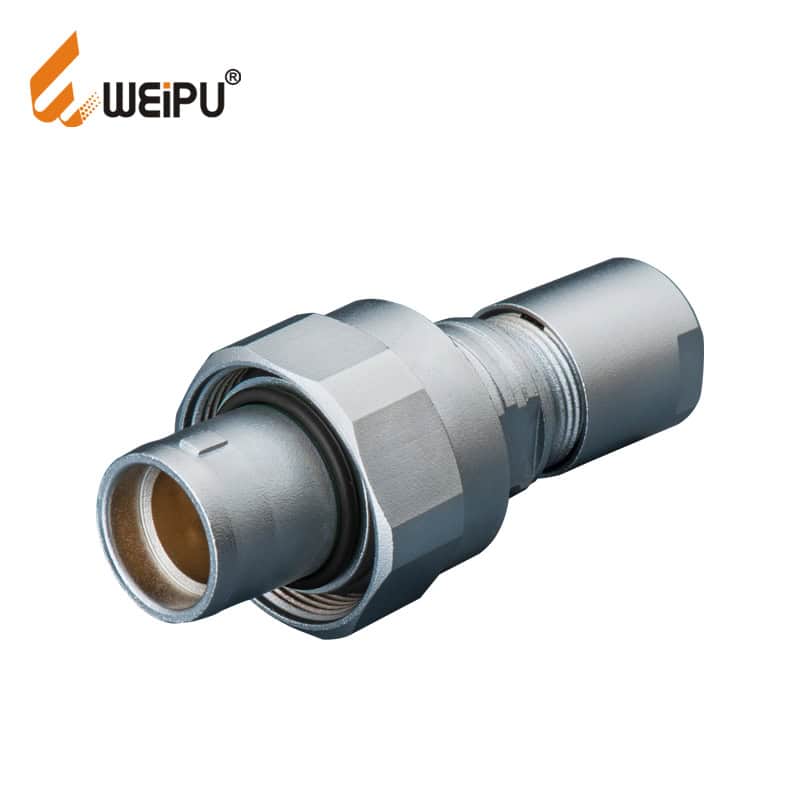

TVG.3W Straight plug, key(G), cable collet

Introduction to Weipu W Series Precision Connectors

Precision connectors play a critical role in ensuring reliable and stable connections in various high-demand industries. Weipu W Series Precision Connectors are known for their exceptional performance, robust construction, and adaptability to extreme conditions. These connectors are widely used across industries such as industrial automation, aerospace, communication equipment, medical devices, and marine engineering. Below, we provide a comprehensive overview of their technical parameters and potential applications.

Technical Parameters

Temperature Range: -20°C ~ +200°C

• The W Series connectors are designed to operate efficiently within a broad temperature range, from -20°C to +200°C. This capability makes them suitable for applications in environments with significant temperature fluctuations, ensuring reliable performance under both cold and hot conditions.

Mating Cycle: >1000 times

• With a mating cycle exceeding 1000 times, the W Series connectors demonstrate high durability and reliability, making them ideal for applications requiring frequent connections and disconnections.

Insert Material: PEEK

• The use of PEEK (Polyether Ether Ketone) as the insert material offers excellent electrical insulation and mechanical strength. This high-performance engineering plastic ensures the connectors’ reliability and safety in various demanding environments.

Contact Material: Brass with Gold Plating

• The contacts are made of brass with gold plating, providing superior conductivity and resistance to oxidation. This ensures low signal loss and long-term stability, which is essential for high-reliability applications such as communication equipment and high-precision electronic instruments.

Shell Material: Chrome-Plated Brass

• The outer shell is made of chrome-plated brass, offering high strength and excellent corrosion resistance. This ensures long-term durability in harsh environments, making it suitable for outdoor equipment and industrial machinery.

Insulation Resistance: >100MΩ

• The high insulation resistance of over 100MΩ ensures no leakage under high voltage conditions, providing excellent electrical insulation performance. This characteristic makes the W Series connectors suitable for high-voltage applications and scenarios requiring high insulation.

IP Rating: IP68

• The IP68 rating indicates that the connectors have superior waterproof and dustproof capabilities, making them ideal for use in outdoor and harsh environments. This protection ensures stable operation even in the most demanding conditions.

Shielding Efficiency: at 10MHz >95dB / at 1GHz >80dB

• The high shielding efficiency ensures that the connectors effectively block electromagnetic interference (EMI) and radio frequency interference (RFI), maintaining signal integrity and stability. This feature is crucial for applications in communication equipment and broadcast devices.

Salt Spray Test: 144 hours

• Withstanding a salt spray test for over 144 hours indicates that the connectors have excellent corrosion resistance, making them suitable for high-corrosion environments such as marine engineering and coastal equipment.

Resistance to Hydrostatic Pressure (mated): ~30 bars

• The ability to resist hydrostatic pressure up to 30 bars when mated ensures the connectors’ reliability and functionality in underwater and high-pressure environments.

Applications and Advantages

Industrial Automation

• The W Series connectors are extensively used in industrial automation due to their high durability and wide temperature range. They provide reliable connections for sensors, controllers, and actuators, enhancing efficient automation control.

Aerospace

• In the aerospace industry, the W Series connectors’ resistance to extreme temperatures and high insulation resistance are particularly valuable. These features ensure stability and safety in critical connections within aircraft navigation systems, communication devices, and control systems.

Communication Equipment

• The W Series connectors excel in communication equipment applications. Their high shielding efficiency and gold-plated contacts ensure high-quality signal transmission. These connectors are widely used in base stations, routers, and switches requiring high-speed data transmission.

Medical Devices

• The W Series connectors are favored in medical devices for their high reliability and durability. They are used in monitoring equipment, diagnostic devices, and surgical instruments, ensuring safe and stable operation in various medical environments.

Marine Engineering

• In marine engineering, the W Series connectors offer significant advantages. Their excellent corrosion resistance and high ingress protection ensure long-term use in high salt spray and humid environments, making them ideal for ship communication, navigation systems, and marine monitoring equipment.

Other Applications

• Additionally, the W Series connectors are used in railway and subway systems, security systems, test and measurement equipment, energy and power devices, and high-end home appliances, showcasing their versatility and superior performance.

Conclusion

Weipu W Series Precision Connectors are designed to meet the rigorous demands of various high-tech industries. Their robust construction, high reliability, and exceptional performance make them the ideal choice for applications requiring stable and efficient connectivity. Whether you are in the industrial automation, aerospace, telecommunications, medical, or marine engineering sector, Weipu W Series Precision Connectors provide the reliable solutions you need.

For more information on our W Series Precision Connectors or to discuss your specific requirements, please visit our website or contact our customer support team. Experience the excellence of Weipu Precision Connectors and elevate your connectivity solutions to new heights.
