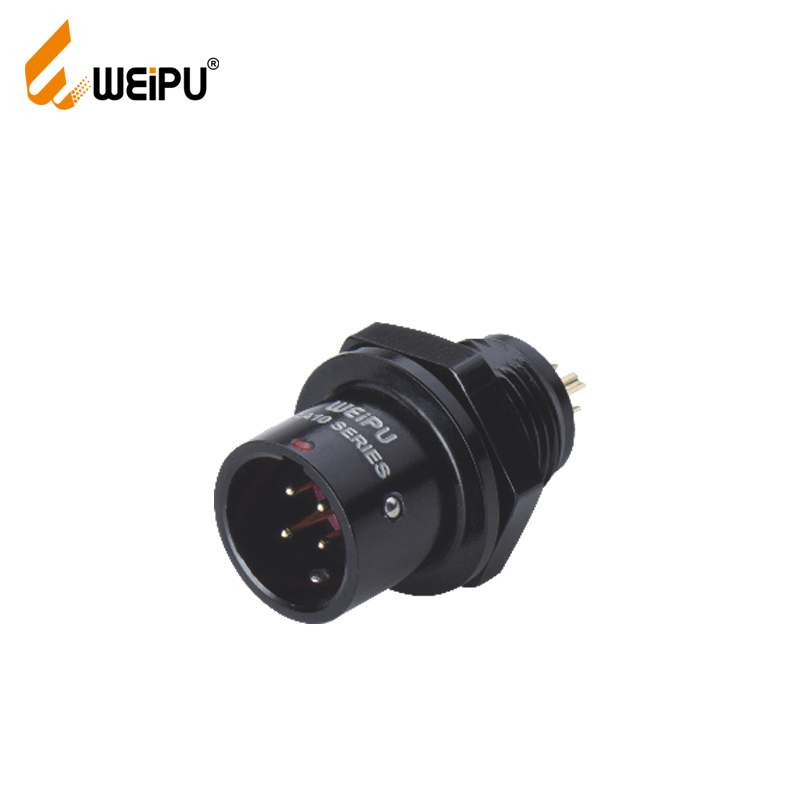

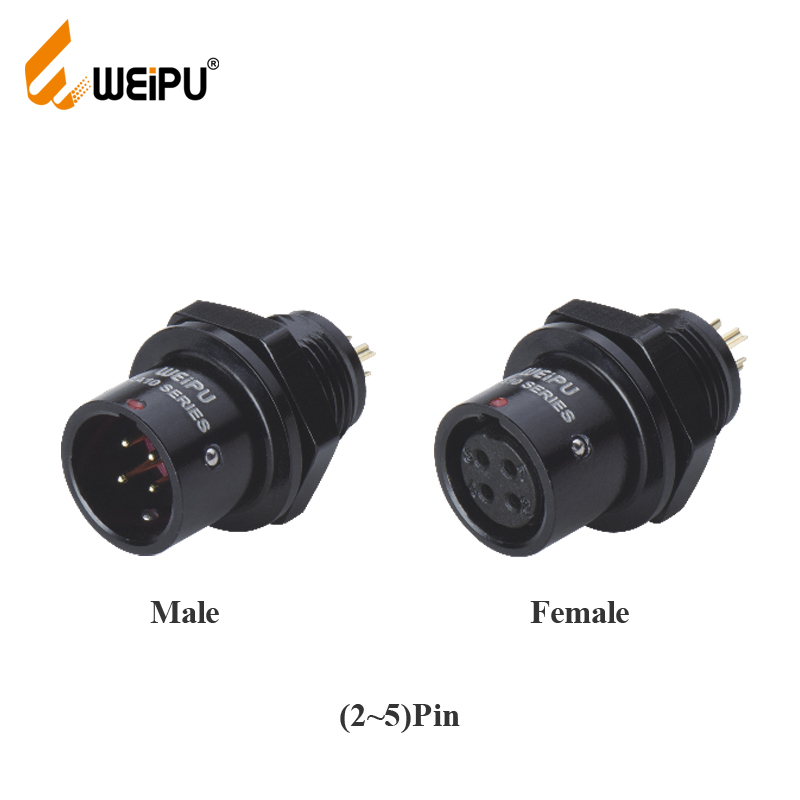

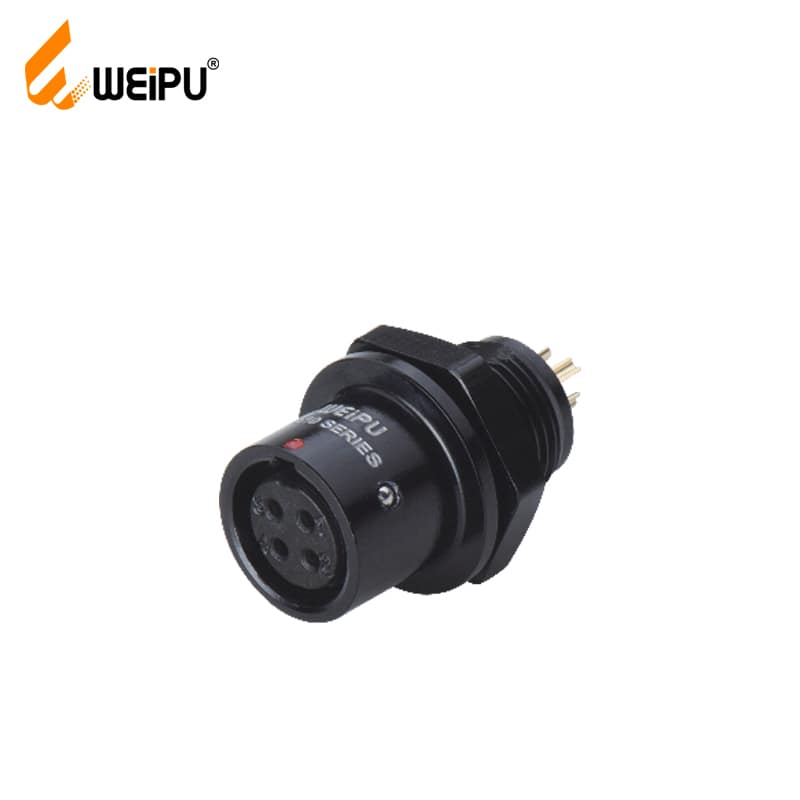

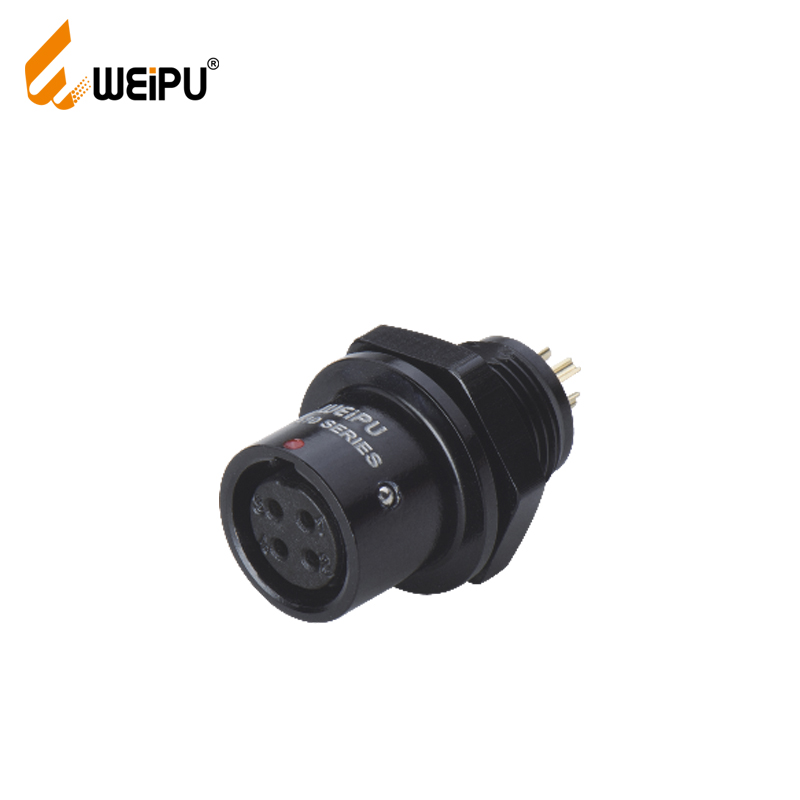

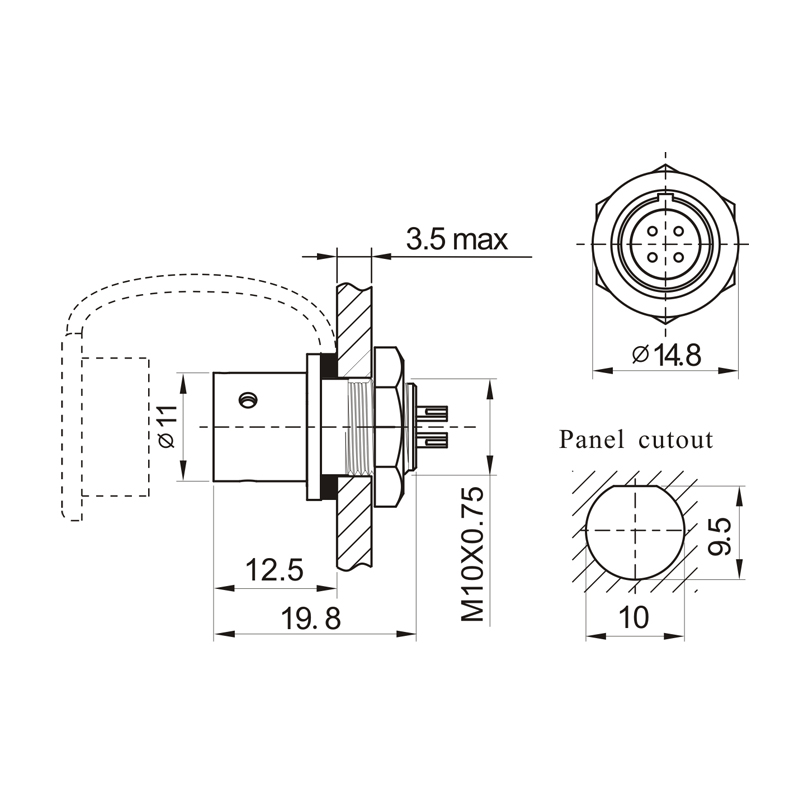

Rear-nut mount connector IP67, Mate with SA1010

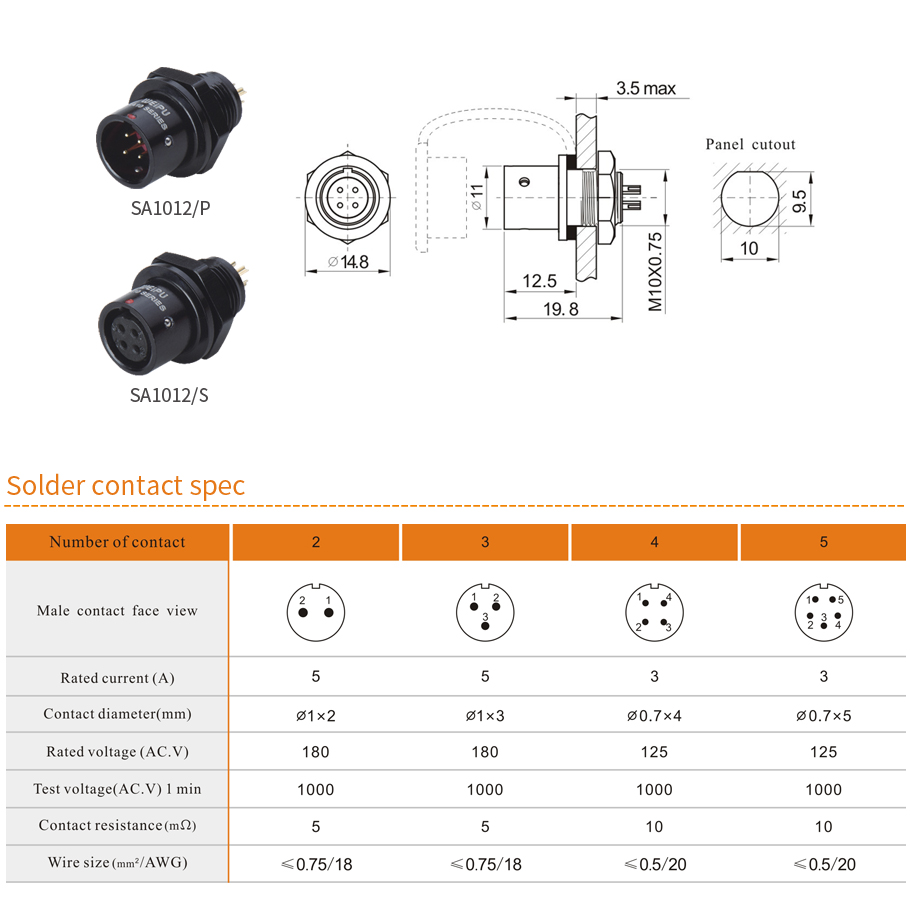

WEIPU SA1012P/S Waterproof Cable Connector
Description
| Coupling | Push-pull |
| Shell material | Anodized aluminium |
| Insert material | PPS, max temperature 260 *C |
| Contact material | Brass with gold plating |
| Termination | Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28 |
| Crimp: SA16,SA20,SA28 | |
| Screw: SA20,SA28 | |
| Cable outer diameter range | SA20: 13・16mm |
| SA6: 3.5-4mm SA12: I: 4-6.5mm（default,no mark），II: 5-8mm | |
| SA8: 4-5mm SA16:1: 5-8mm （default,no mark），II: 8-l2mm | |
| SA10:4-6.5mm SA20: 8-12mm | |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | – 40C~+85C |
| Insulation resistance | 2000 MΩ |
| 01、Insert retainer | ★08、Contact |
| ★02、Contact | 09、Clamping ring |
| 03、Panel connector shell | 10、O ring |
| 04、Inter facial seal | 11、Back shell |
| 05、Insert | 12、Compression nut |
| 06、Coupling spring | 13、Rubber ring |
| 07、Insert | |
| ★Each side can be male or female contact | |
| SA10 IP67 Series configuration table(list) | |
| 01、Cable connector（>SA1010/P_ _ >SA1010/S_ _） | a、Male contact |
| 02、In-line cable connector（>SA1011/P_ _ >SA1011/S_ _） | b、Colour: B: Black S: Silver L: Blue(special order) G: Green(special order) R: Red(special order) |
| 03、Rear-nut mount（>SA1012/P_ _ >SA1012/S_ _） | c、Number of contact |
| 04、Front-nut mount（>SA1015/P_ _ >SA1015/S_ _） | d、Fmale contact |
