Mate with SA810

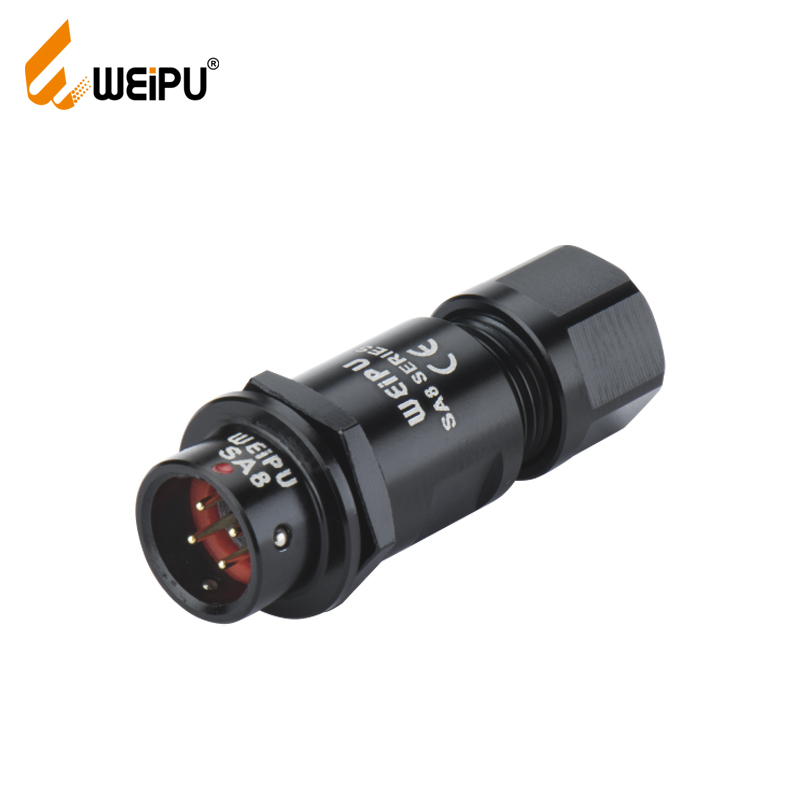

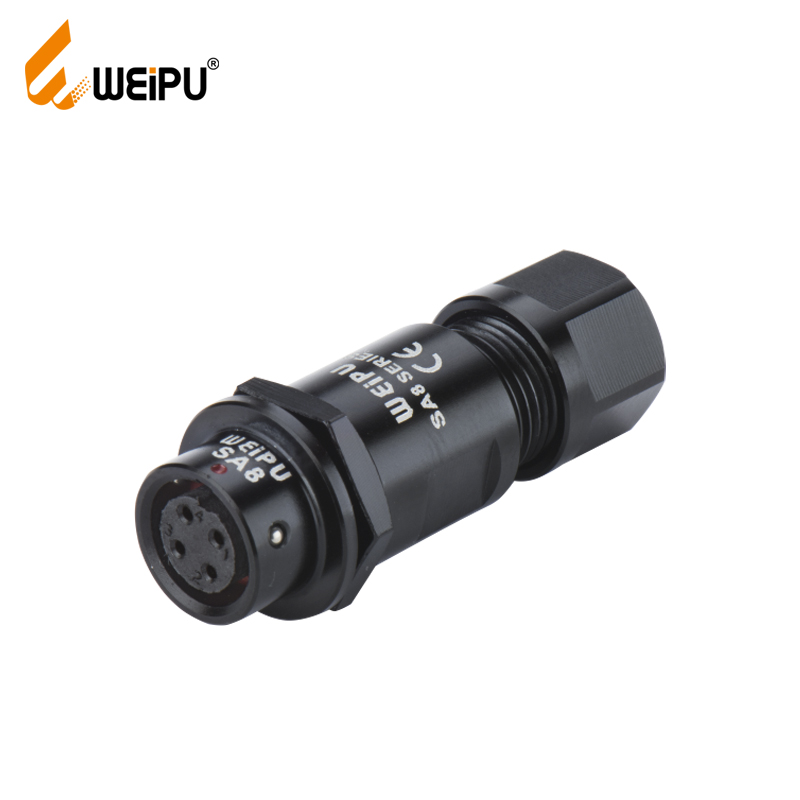

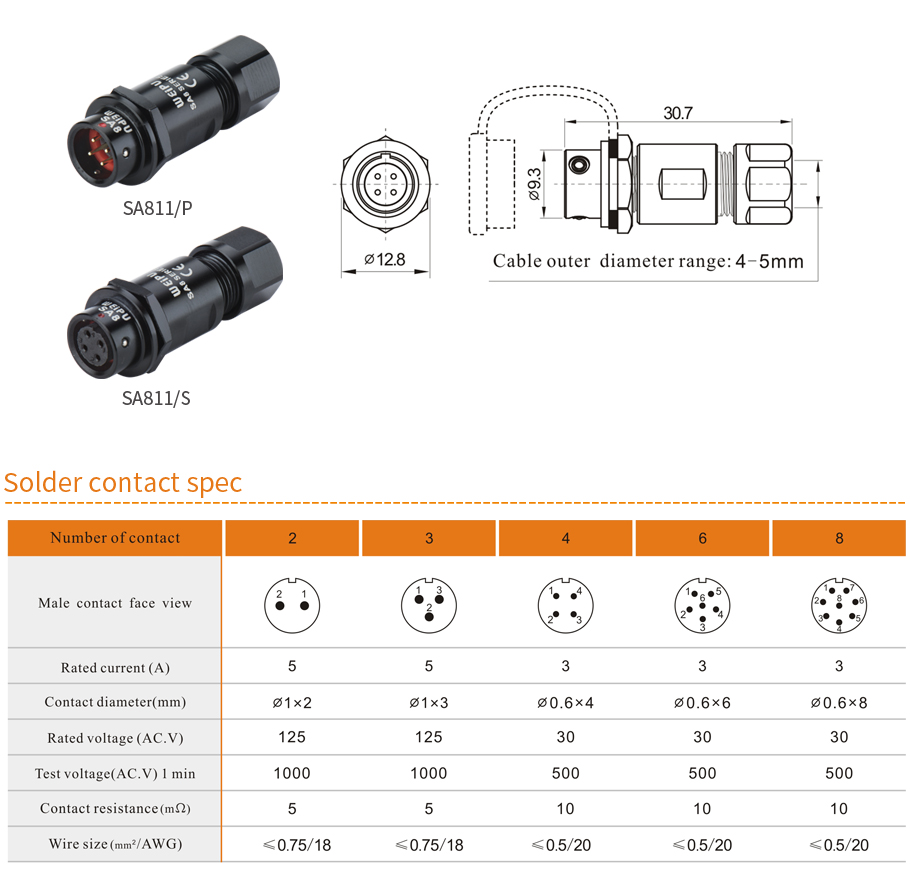

SA811/P SA811/S In-line cable connector IP67
Description
| Coupling | Push-pull |
| Shell material | Anodized aluminium |
| Insert material | PPS, max temperature 260 *C |
| Contact material | Brass with gold plating |
| Termination | Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28 |
| Crimp: SA16,SA20,SA28 | |
| Screw: SA20,SA28 | |

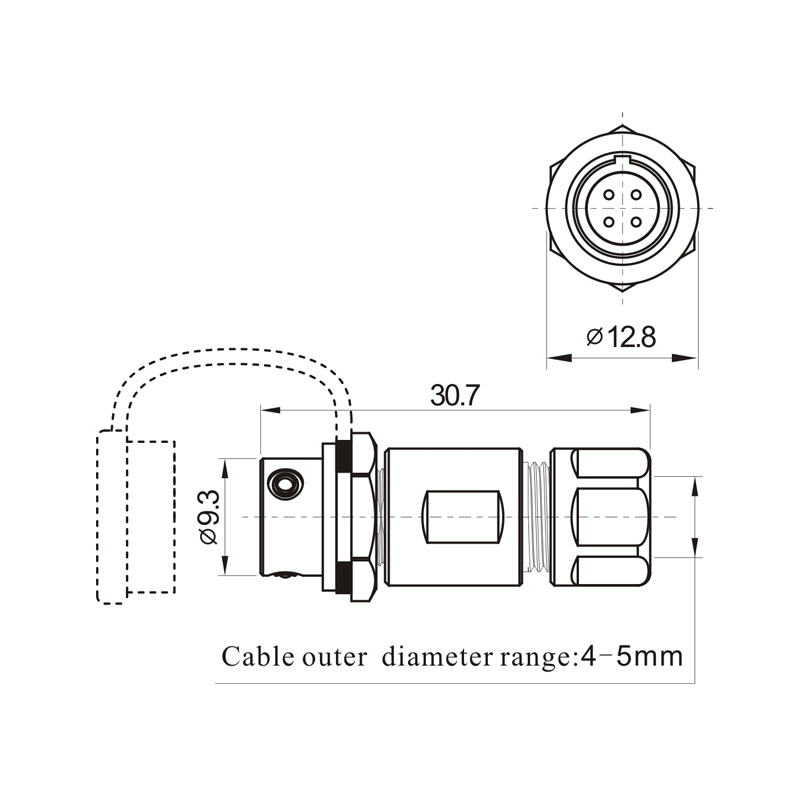

| Cable outer diameter range | SA20: 13・16mm |
| SA6: 3.5-4mm SA12: I: 4-6.5mm（default,no mark），II: 5-8mm | |
| SA8: 4-5mm SA16:1: 5-8mm （default,no mark），II: 8-l2mm | |
| SA10:4-6.5mm SA20: 8-12mm | |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | – 40C~+85C |
| Insulation resistance | 2000 MΩ |
| 01、Insert retainer | ★08、Contact |
| ★02、Contact | 09、Clamping ring |
| 03、Panel connector shell | 10、O ring |
| 04、Inter facial seal | 11、Back shell |
| 05、Insert | 12、Compression nut |
| 06、Coupling spring | 13、Rubber ring |
| 07、Insert | |

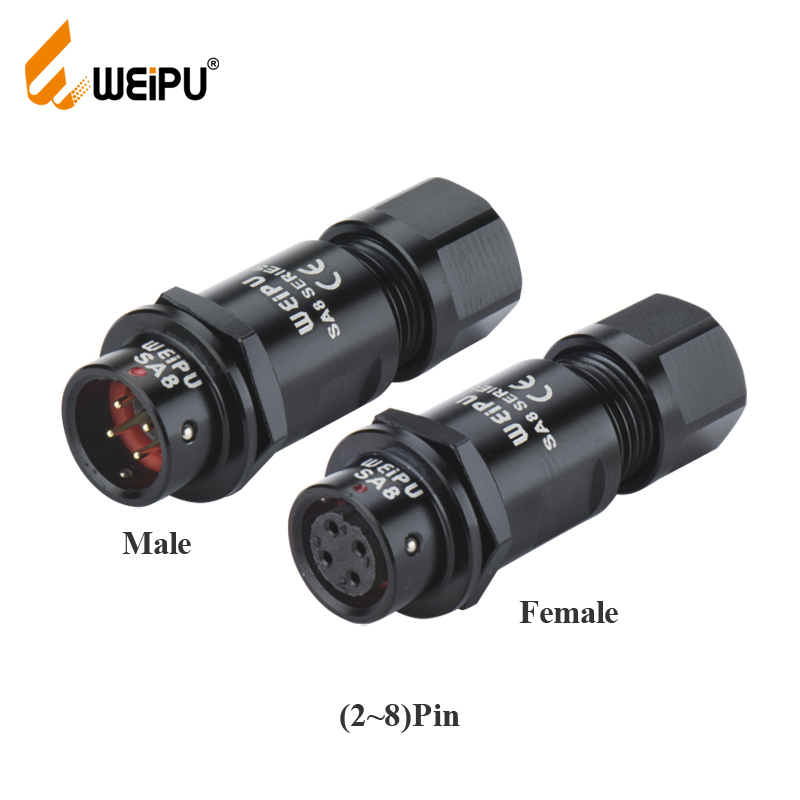

| ★Each side can be male or female contact | |

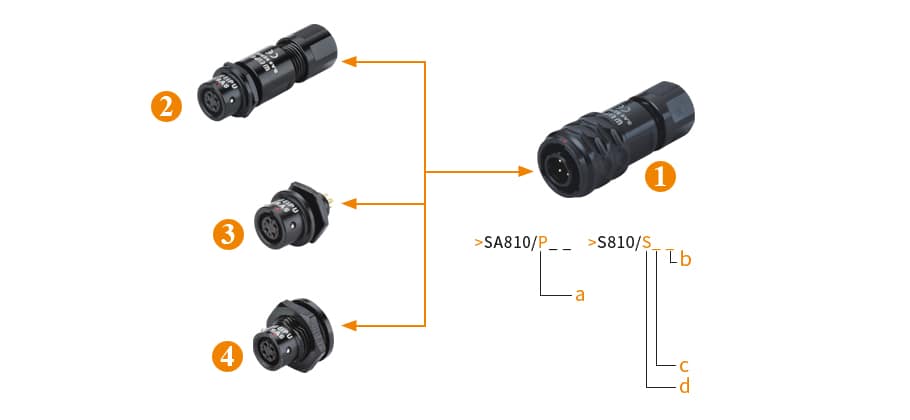

| SA8 IP67 Series configuration table(list) | |
| 01、Cable connector（>SA810/P_ _ >SA810/S_ _） | a、Male contact |
| 02、In-line cable connector（>SA811/P_ _ >SA811/S_ _） | b、Colour:B: Black S: Silver L: Blue(special order) G: Green(special order) |
| 03、Rear-nut mount（>SA812/P_ _ >SA812/S_ _） | c、Number of contact |
| 04、Front-nut mount（>SA815/P_ _ >SA815/S_ _） | d、Fmale contact |
Unveiling Enhanced Connectivity: Weipu SA Series Solution
Introduction:
In an era driven by technological advancement, robust connectivity solutions are indispensable. Among these, the Weipu SA Series stands out for its reliability, versatility, and efficiency. Let’s delve into the world of Weipu SA Series and explore how it revolutionizes connectivity in various industries.
Section 1: Understanding the Weipu SA Series
The Weipu SA Series represents a pinnacle in connector technology. Crafted with precision engineering and top-grade materials, these connectors offer unparalleled performance in diverse applications. Whether it’s industrial machinery, marine equipment, or automation systems, the SA Series ensures seamless connectivity and optimal functionality.
Section 2: Key Features and Benefits
Robust Construction: The SA Series connectors boast robust construction, ensuring durability and longevity even in harsh environments.
IP68 Waterproof Rating: With an IP68 waterproof rating, these connectors provide reliable protection against moisture, dust, and other environmental factors.
High Electrical Performance: Engineered for high electrical performance, the SA Series connectors maintain signal integrity and minimize signal loss.
Versatility: Available in various configurations and sizes, the SA Series connectors offer versatility to suit different application requirements.
Easy Installation: Designed for easy installation, these connectors streamline the assembly process, saving time and effort.
Section 3: Applications
The versatility of the Weipu SA Series makes it suitable for a wide range of applications, including:
Industrial Machinery
Marine Equipment
Automation Systems
Outdoor Lighting
Renewable Energy Systems
Medical Devices
Section 4: Customization Options
Weipu understands that every application is unique, which is why the SA Series connectors are customizable to meet specific requirements. Whether it’s special dimensions, materials, or configurations, Weipu provides tailored solutions to address the diverse needs of customers.
Section 5: Success Stories
Numerous success stories attest to the effectiveness of the Weipu SA Series connectors. From powering critical machinery in industrial settings to ensuring reliable communication in marine applications, these connectors have played a pivotal role in enhancing operational efficiency and reliability.
Conclusion:
In conclusion, the Weipu SA Series represents a paradigm shift in connector technology. With its robust construction, waterproof design, and versatile capabilities, it offers unmatched performance and reliability across various industries. As businesses strive for greater connectivity and efficiency, the Weipu SA Series emerges as the ideal solution to meet their evolving needs.
