Mate with SF811B, SF812B,SF815B

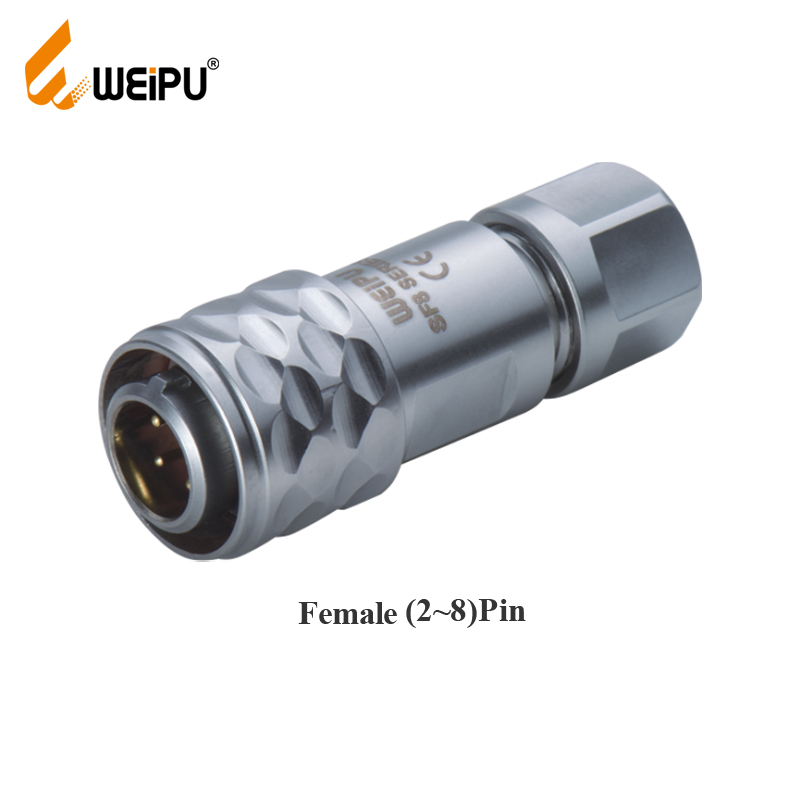

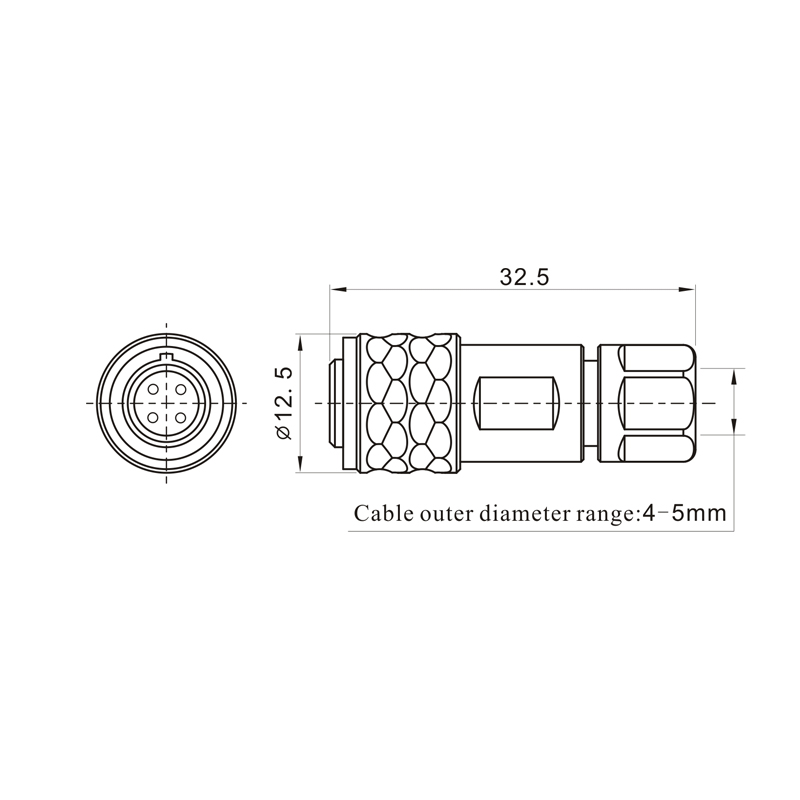

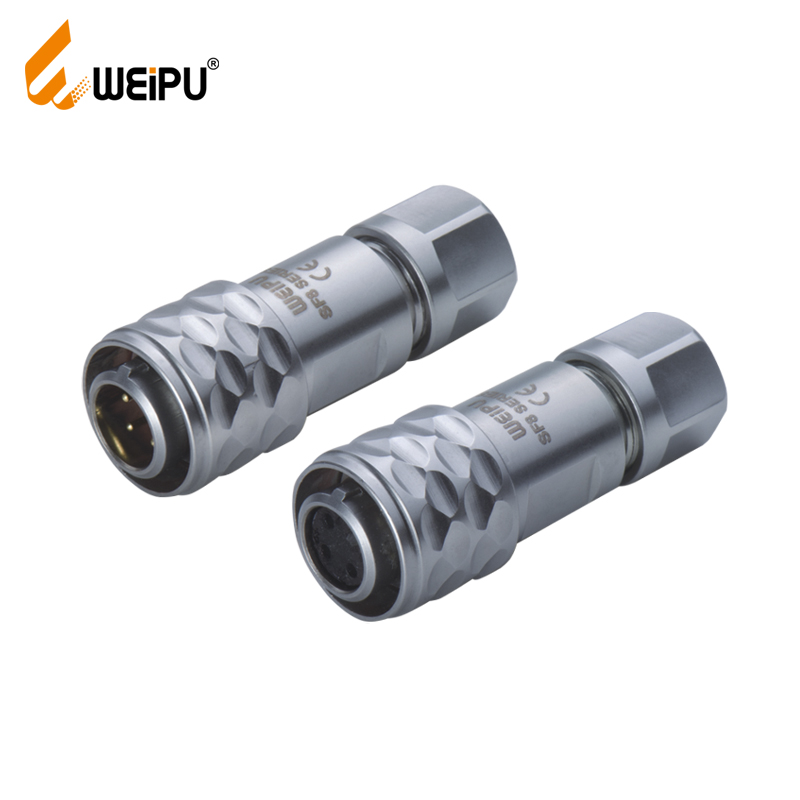

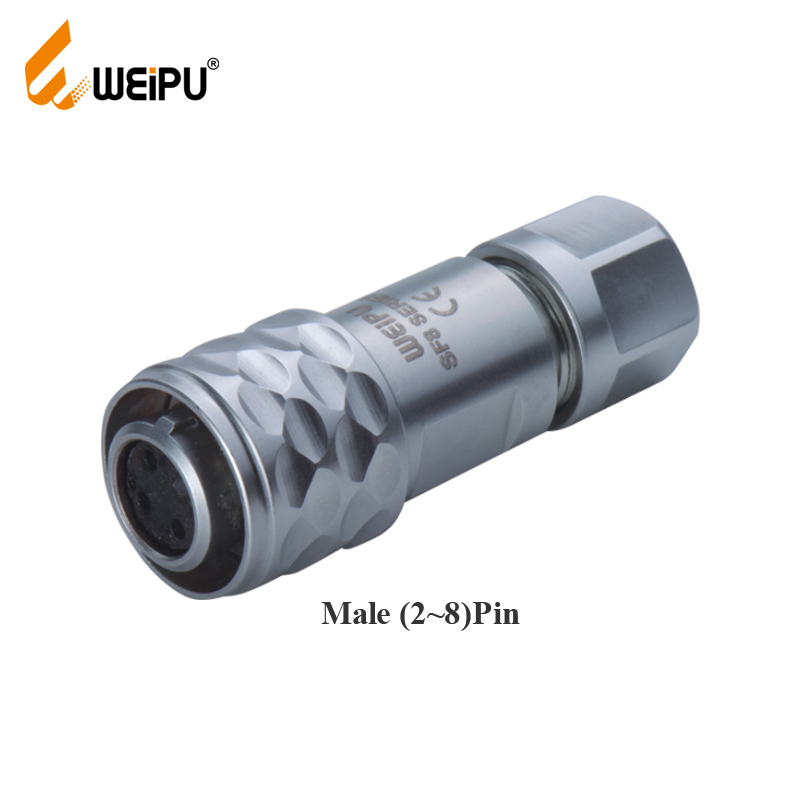

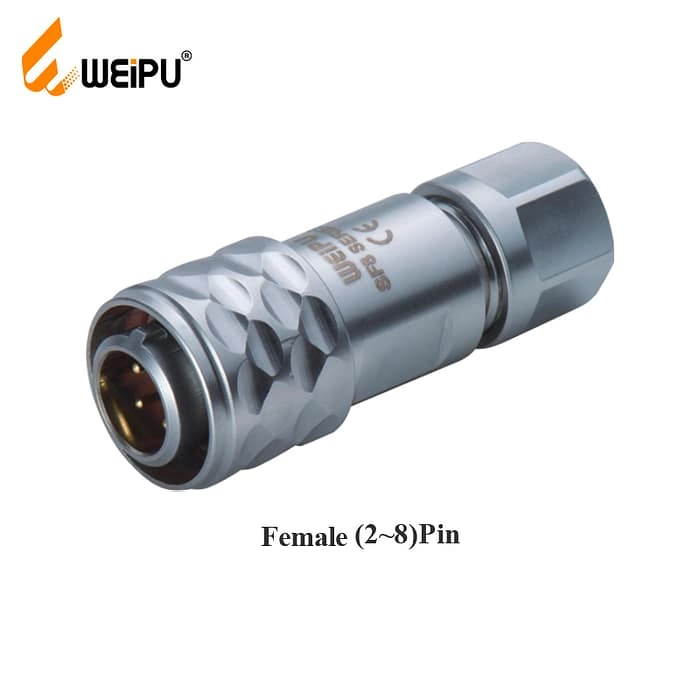

SF810B/P SF810B/S Cable connector IP67
Description
| Coupling | Push-pull |
| Shell material | Brass with chrome plating |
| Insert material | PPS max temperature 260℃ |
| Contact material | Brass with gold plating |
| Termination | Solder:SF6,SF8,SF10,SF12,SF16,SF20 Crimp:SF16,SF20 Screw:SF20(2.5mm contact) |
| Cable outer diameter range | SF6:3-4mm SF8:4-5mm SF10:4-6.5mm SF12:I:4-6.5mm，II:5-8mm SFl6 I:5-8mm II:8-12mm SF20 I:8-12mm |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -40℃~+85℃ |
| Insulation resistance | 2000M(ohm) |
| SF8 IP67 Series configuration table(list) | |

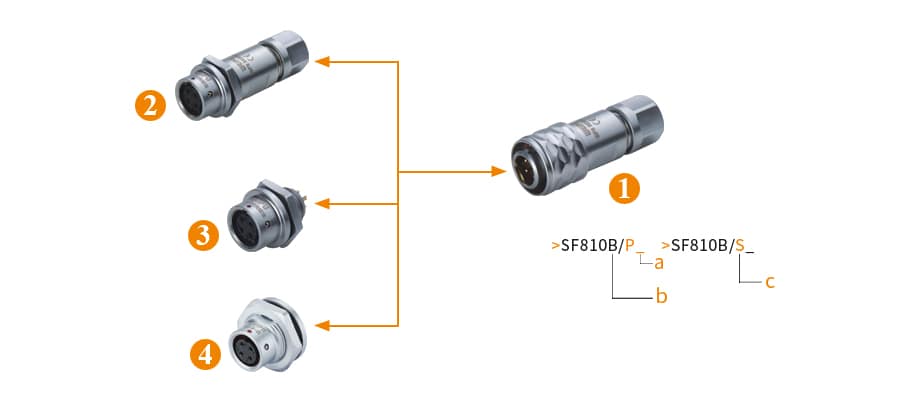

| 01、Cable connector（>SF810/P_ _ >SF810/S_ _） | a、Number of contact |
| 02、In-line cable connector（>SF811/P_ _ >SF811/S_ _） | b、Male contact |
| 03、Rear-nut mount（>SF812/P_ _ >SF812/S_ _） | c、Fmale contact |
| 04、Front-nut mount（>SF815/P_ _ >SF815/S_ _） | |
| 01、Insert retainer | ★08、Contact |
| ★02、Contact | 09、Clamping ring |
| 03、Panel connector shell | 10、O ring |
| 04、Inter facial seal | 11、Back shell |
| 05、Insert | 12、Compression nut |
| 06、Coupling spring | 13、Rubber ring |
| 07、Insert |

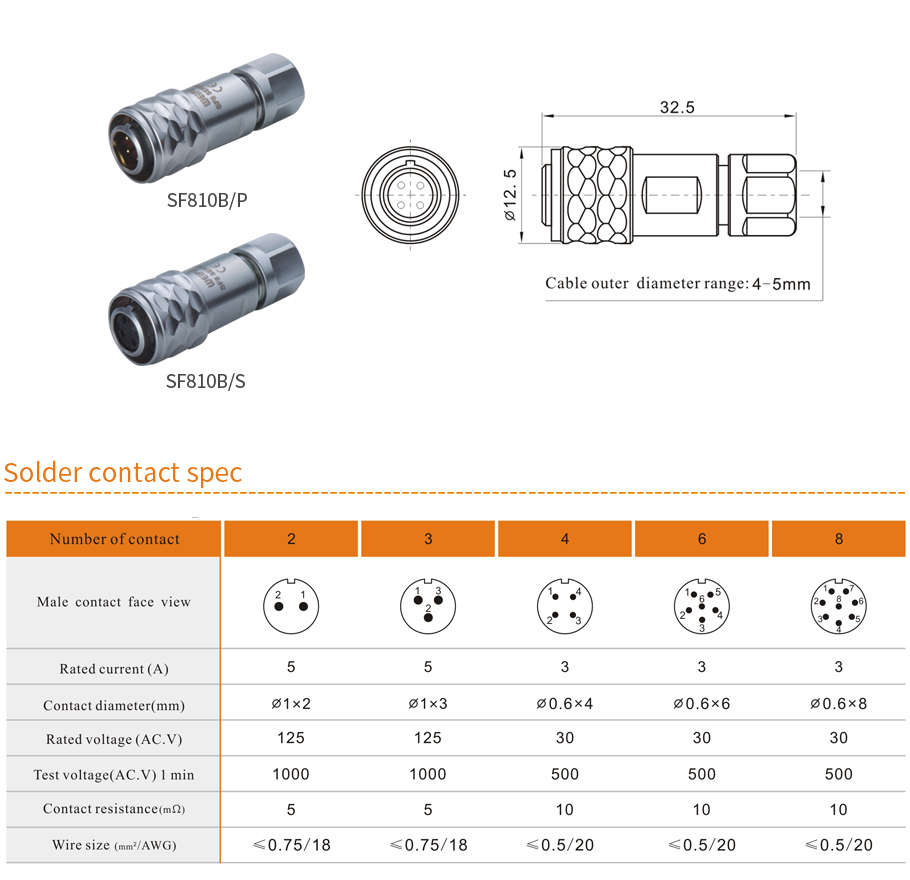

Solder contact spec
