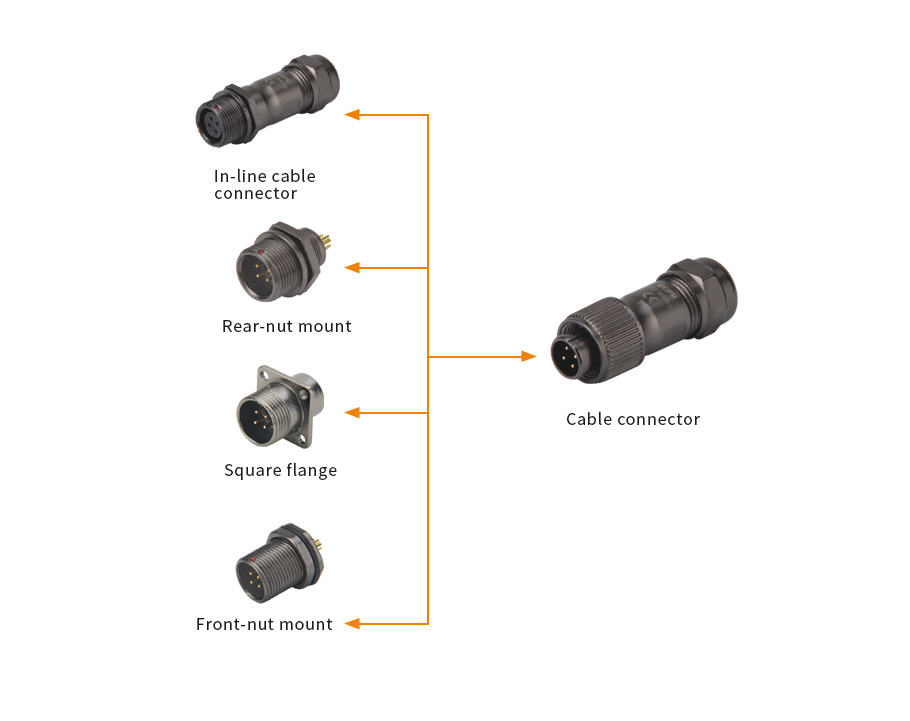

Mate with ST1211,ST212,ST1213,ST1214
With threaded coupling and a cable outer diameter of 5-8mm design , WEIPU ST1210 in line cable connector guarantees reliable and stable connections in the smallest of spaces. WEIPU waterproof electric cable connector can help your application work efficiently under any circumstances.
| Coupling | Threaded coupling |
| Shell material | Zinc alloy with black nickel plating |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder |
| Cable outer diameter range | 5-8mm |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -40C〜 + 85°C |
| Insulation resistance | 2000MΩ |

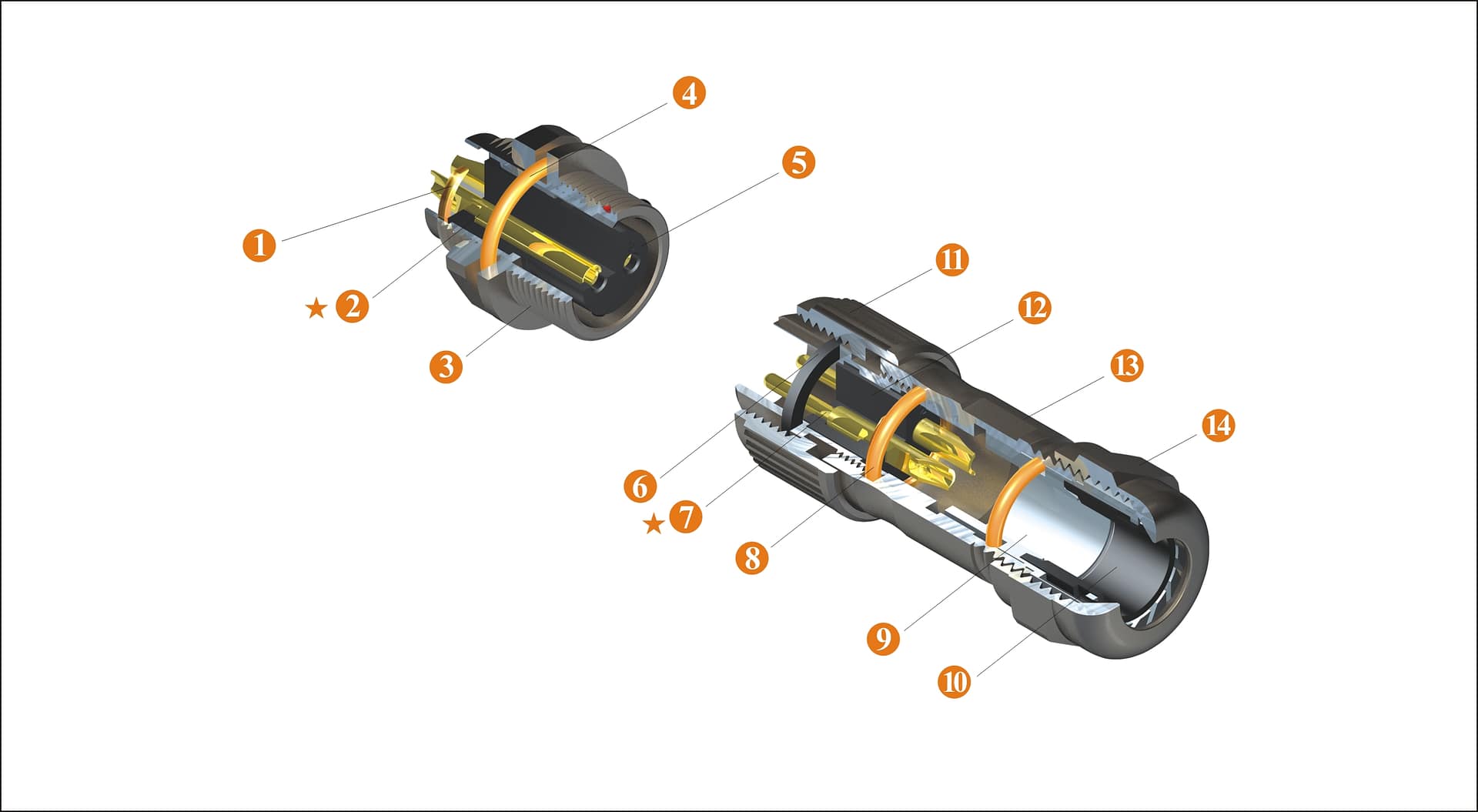

| 01、Insert Retainer | 08、O ring |
| ★02、Contact | 09、Clamping ring |
| 03、Panel connector shell | 10、Rubber ring |
| 04、O ring | 11、Locking nut |
| 05、Insert | 12、Insert |
| 06、Inter facial seal | 13、Back shell |
| ★07、Contact | 14、Compression nut |
| ★Each side can be male or female contact | |

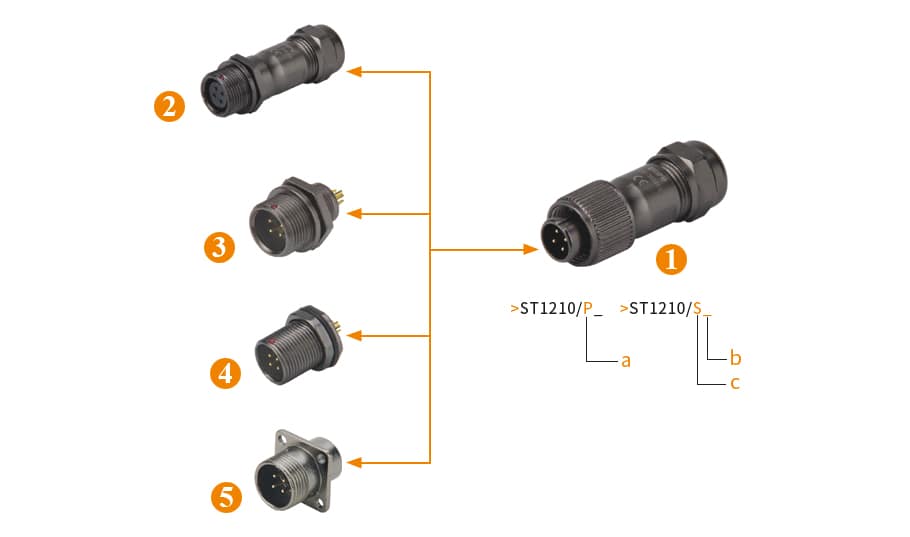

| WEIPU ST12 IP67 Inline Cable Connector Series Configuration Table (List) | |
| 01、Cable connector（>ST1210/P_ >ST1210/S_） | a、Male contact |
| 02、In-line cable connector（>ST1211/P_ >ST1211/S_） | b、Number of contact |
| 03、Rear-nut mount（>ST1212/P_ >ST1212/S_） | c、Female contact |
| 04、Front-nut mount（>ST1213/P_ >ST1213/S_） | |
| 05、Square flange（>ST1214/P_ >ST1214/S_） | |

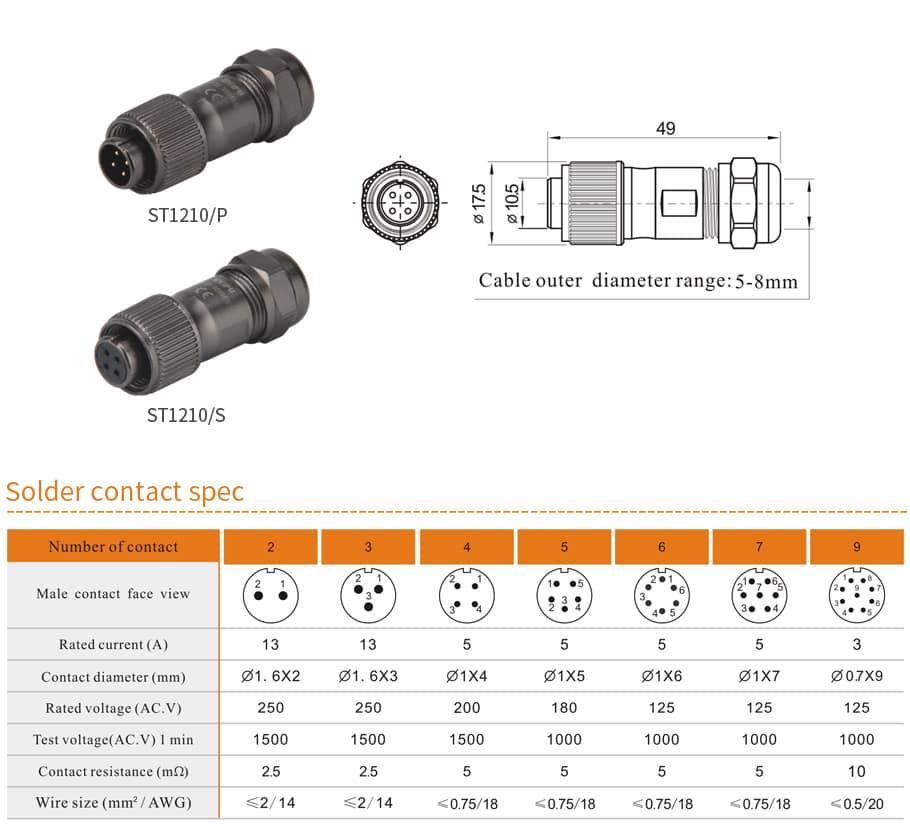

WEIPU ST1210 Inline Cable Connector Specification
WEIPU specializes in high performance standard and high-quality circular connectors, industrial connector, heavy duty connector, distribution box series and cable assembly for various applications in harsh environments that meets the unique needs of all customers.
Industrial Application
Model: ST12 Series Inline Cable Connector
Function: WEIPU ST1210 inline electrical connector designed for various industrial applications, such as marine, medical, automation industry.
How WEIPU ST1210 Inline Cable Connector Can Help Your Application
WEIPU ST12 inline cable connectors are designed for the maximum efficiency and versatility. With the latest and advanced technology, this in line electrical connector can help customers transmit power, data and signal efficiently. We research and develop inline cable connector and related accessories independently, which you can purchase from WEIPU one source to save your sourcing and assembling time.
Customized Services
WEIPU provides customized connector solutions for customers. WEIPU circular connector offers individual solutions based on the data and needs provided by different customers.
