Mate with SY2110, SY2116

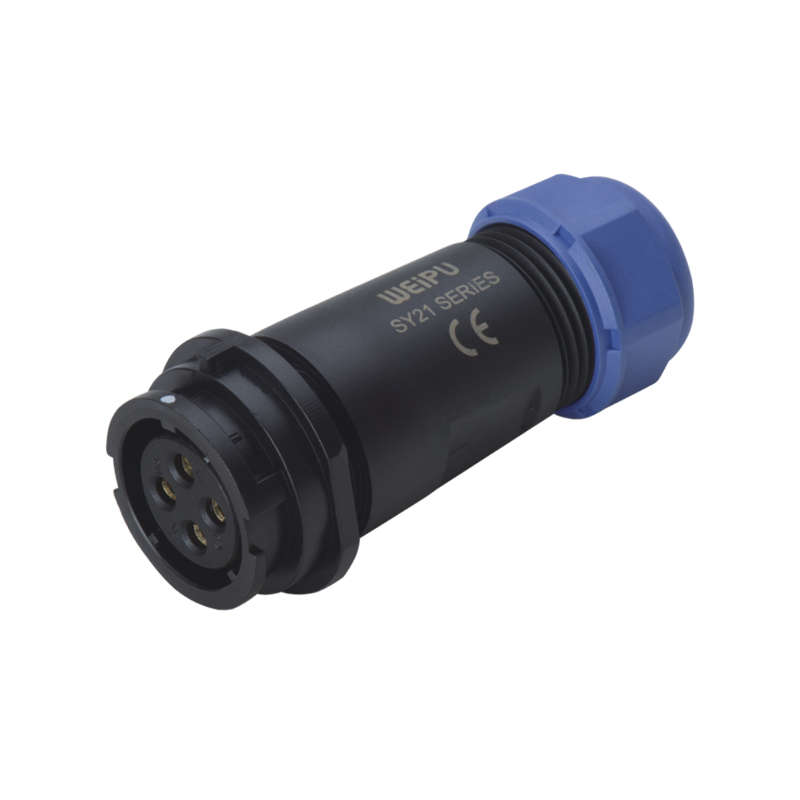

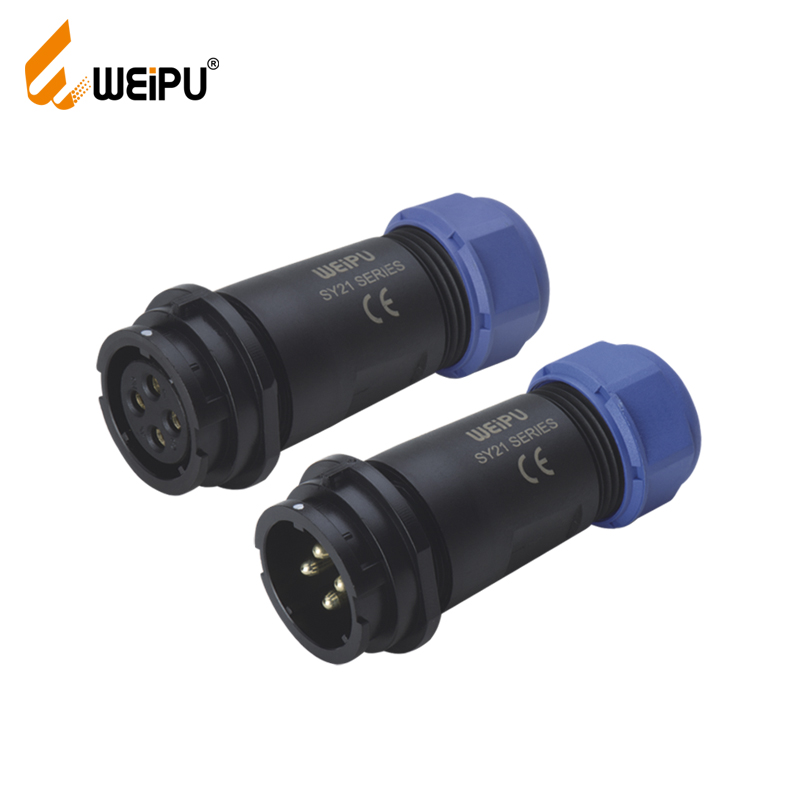

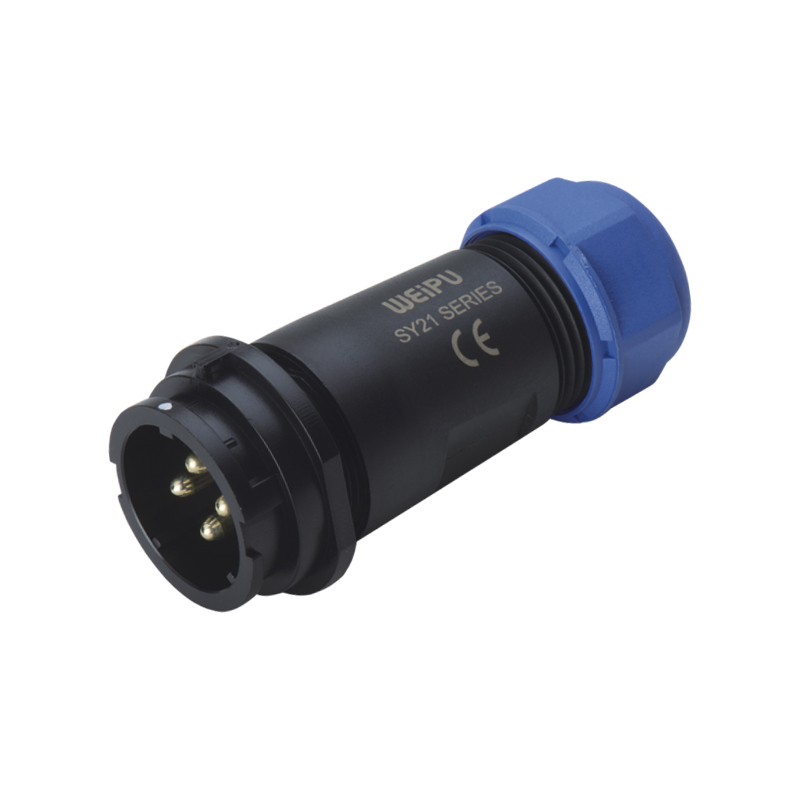

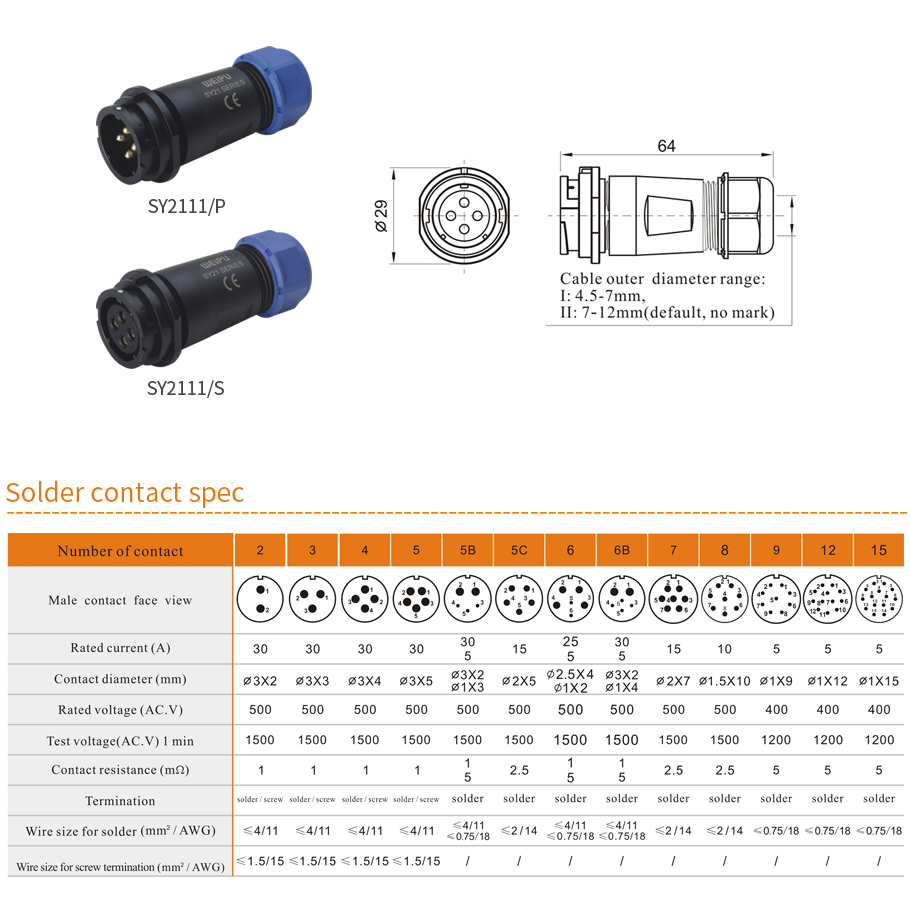

SY2111/P SY2111/S In-line cable connector IP67
Description
| Coupling | Bayonet |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder: SY13, SY17, SY21 Crimp: SY 17 Screw: SY21（φ3mm contact） |
| Cable outer diameter range | SY13 I: 4-6.5mm,Ⅱ: 5-8mm SY17: 6-10mm |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -40°C~ + 85°C |
| Insulation resistance | 2000 MQ |
| 01、O ring | ★07、Contact |
| ★02、Contact | 08、Rubber ring |
| 03、Retaining nut | 09、Locking nut |
| 04、Insert | 10、Insert |
| 05、Panel connector shell | 11、Back shell |
| 06、O ring | 12、Compression nut |
| ★Each side can be male or female contact | |

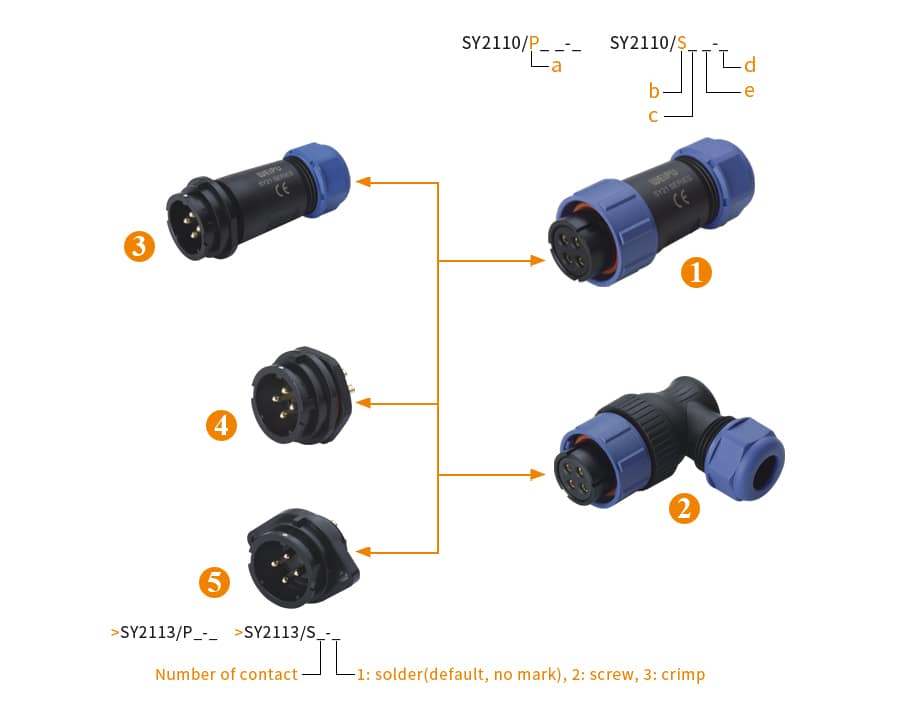

| SY21 IP67 Series configuration table(list) | |
| 01、Cable connector（>SY2110/P_ _-_ >SY2110/S_ _-_） | a、Male contact |
| 02、Angled cable connector（>SY2116/P_ _-_ >SY2116/S_ _-_） | b、Fmale contact |
| 03、In-line cable connector （>SY2111/P_ _-_ >SY2111/S_ _-_） | c、Number of contact |
| 04、Rear-nut mount（>SY2112/P_-_ >SY2112/S_-_） | d、1: solder(default,no mark), 2: screw, 3: crimp |
| 05、2-hole flange（>SY2113/P_-_ >SY2113/S_-_） | e、Cable outer diameter:I:4.5-7mm,II:7-12mm(default,no mark) |
