Mate with SY2910

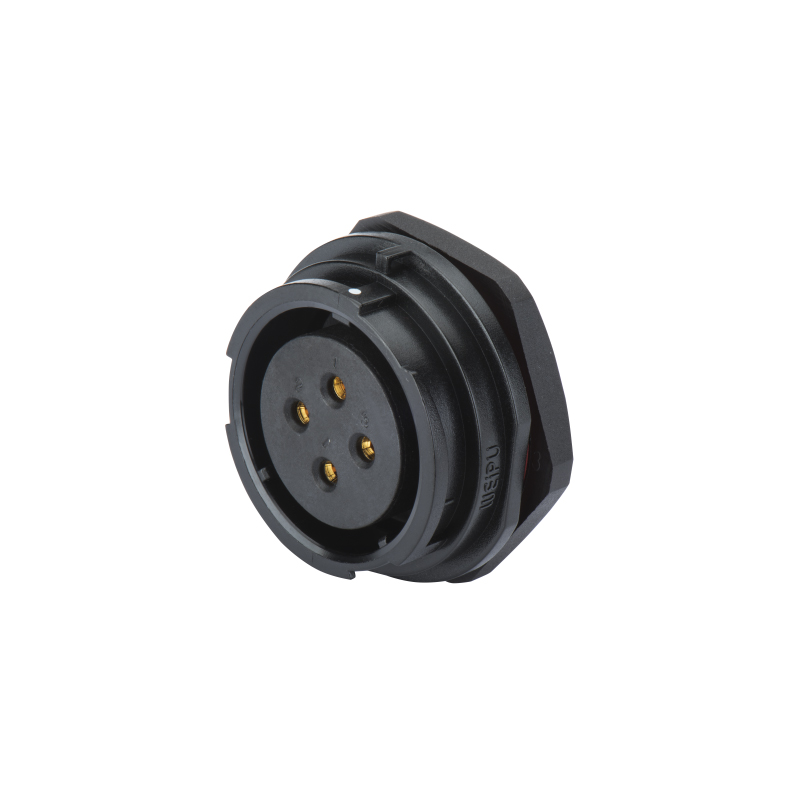

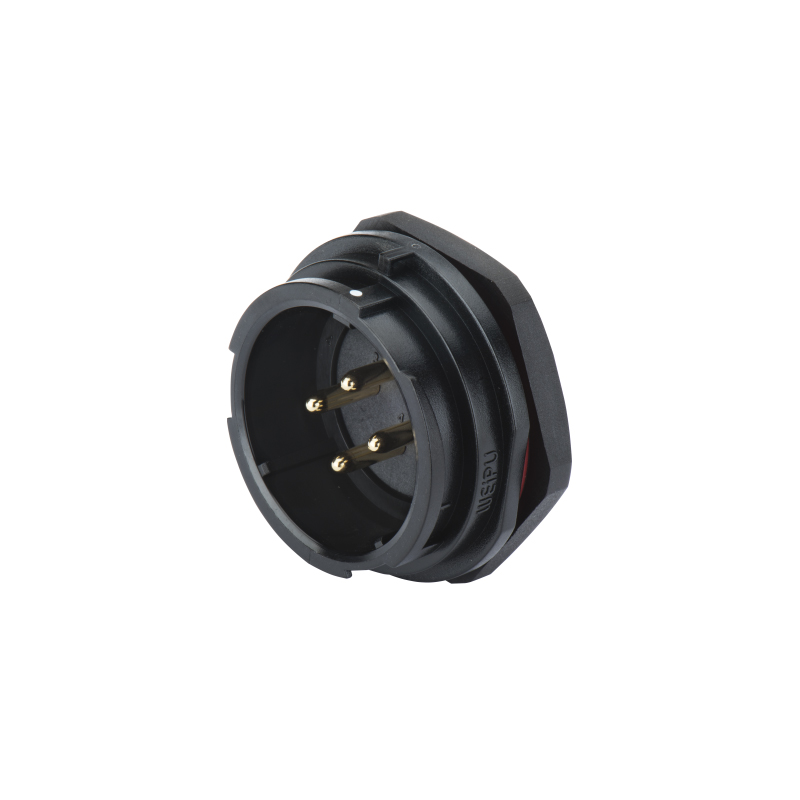

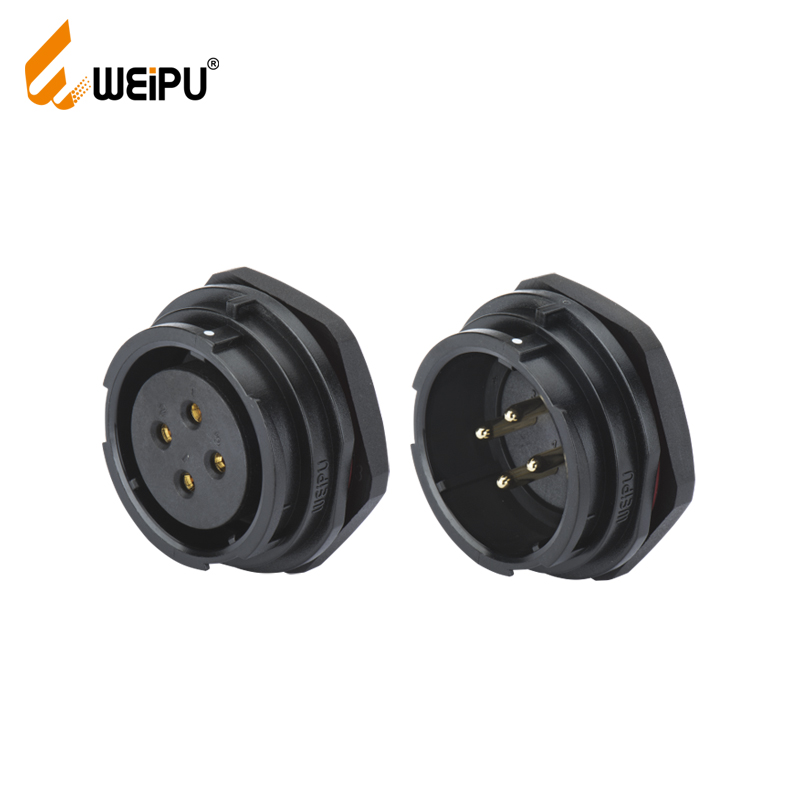

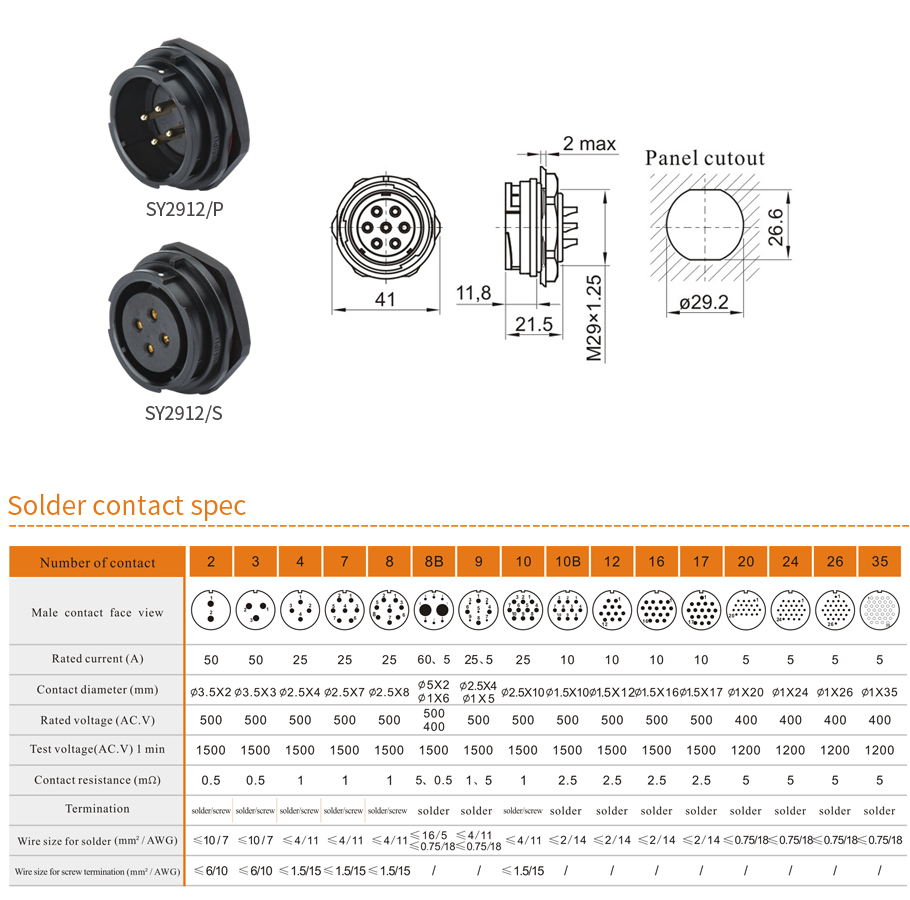

SY2912/P SY2912/S Rear-nut mount IP67
Description
| Coupling | Bayonet |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder: SY13, SY17, SY21 Crimp: SY 17 Screw: SY21（φ3mm contact） |
| Cable outer diameter range | SY13 I: 4-6.5mm,Ⅱ: 5-8mm SY17: 6-10mm |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -40°C~ + 85°C |
| Insulation resistance | 2000 MQ |
| 01、O ring | ★07、Contact |
| ★02、Contact | 08、Rubber ring |
| 03、Retaining nut | 09、Locking nut |
| 04、Insert | 10、Insert |
| 05、Panel connector shell | 11、Back shell |
| 06、O ring | 12、Compression nut |
| ★Each side can be male or female contact | |

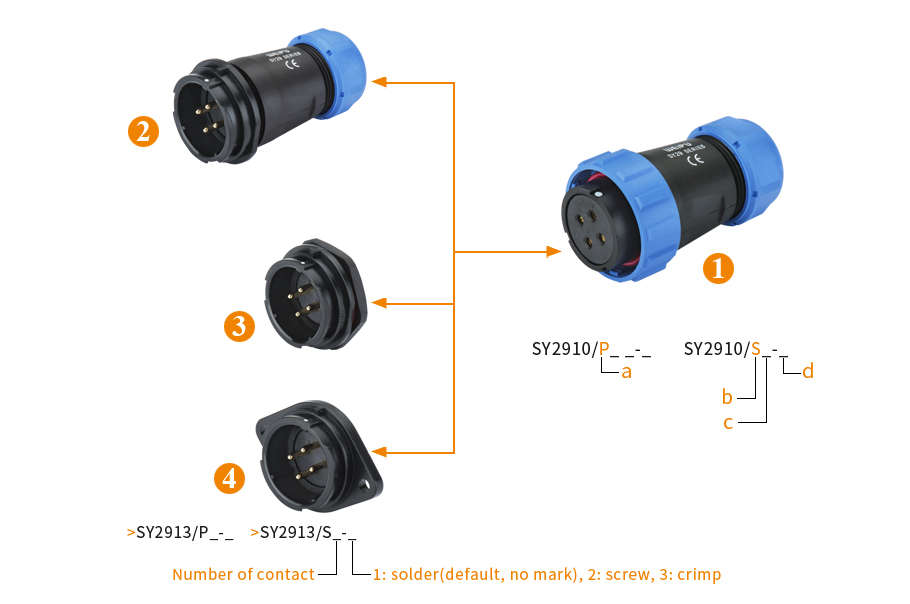

| SY29 IP67 Series configuration table(list) | |
| 01、Cable connector（>SY2910/P_ _-_ >SY2910/S_-_） | a、Male contact |

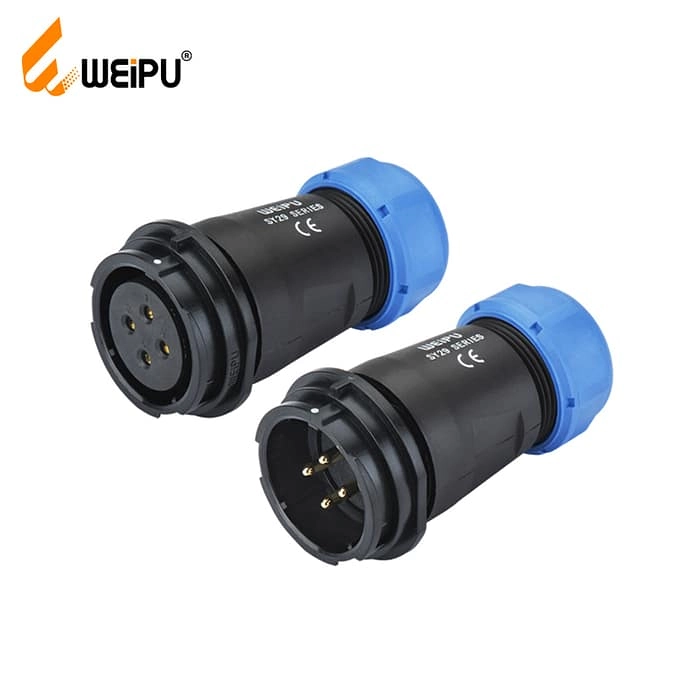

| 02、In-line cable connector（>SY2911/P_ _-_ >SY2911/S_-_） | b、Fmale contact |
| 03、Rear-nut mount （>SY2912/P_-_ >SY2912/S_-_） | c、Number of contact |
| 04、2-hole flange（>SY2913/P_-_ >SY2913/S_-_） | d、1: solder(default, no mark), 2: screw, 3: crimp |
