Mate with WA22J7TK1,WA22J7ZE1,WA22J7TL1

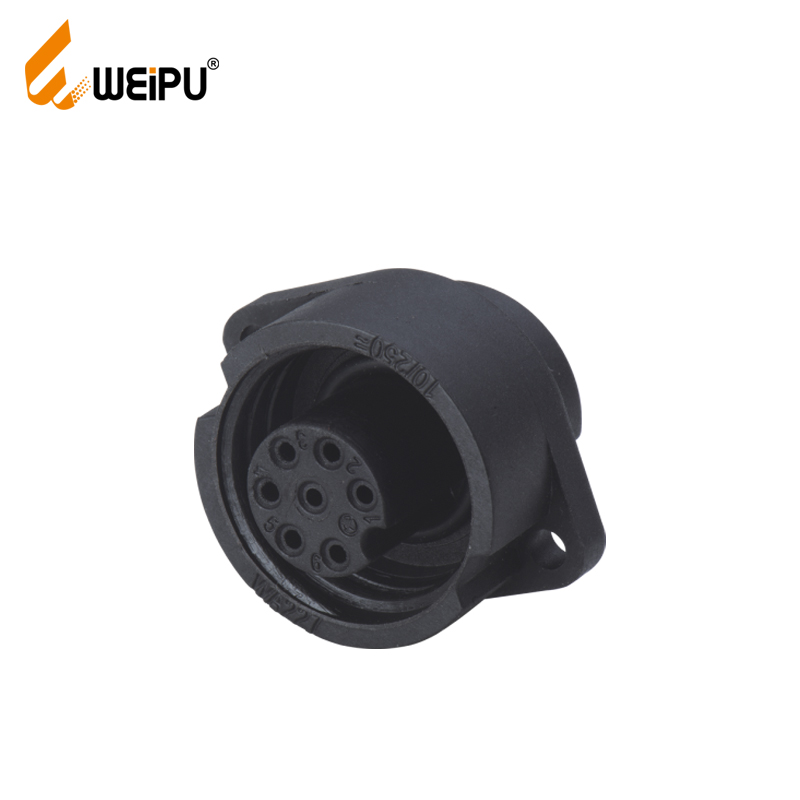

WA22k7Z1 6+PE female panel connector IP67
Description
| Number of contact | 3+PE | 6+PE |
| Contact diameter (mm) | φ2 | φ1.5 |
| Rated voltage (AC.V) | 400 | 250 |
| Rated current (A) | 16 | 10 |
| Wire size (mm2/AWG) | ≤2.5/14 | ≤0.75/18 |
| Termination | Screw | Solder |
| Test voltage(AC.V)1min | 2000 | |
| Insulation resistance (MΩ) | 2000 | |
| Shell material | Nylon66, fire resistance: V-0 | |
| Contact material | Brass with gold plating | |
| Temperature range | -40°C〜 + 85°C | |
| Mating cycle | 500 | |

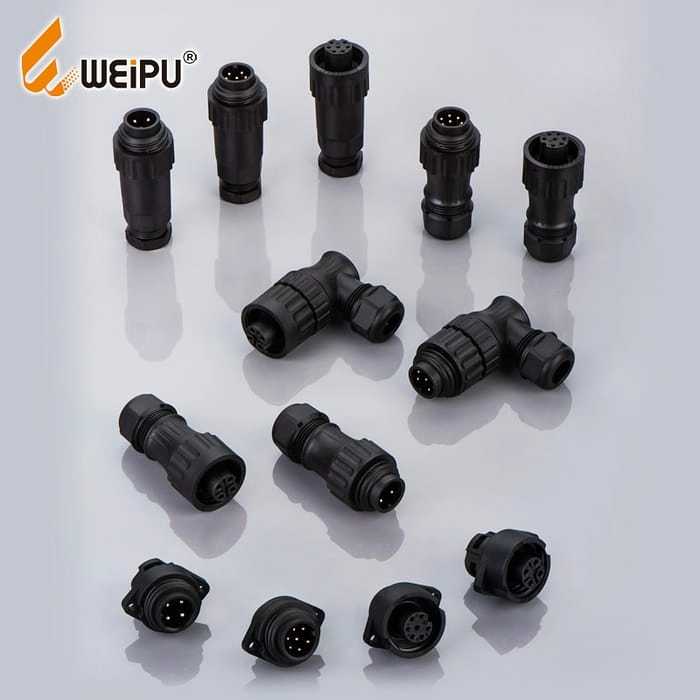

| WA22 (6+PEseries) IP67 [Solder]configuration table(list) |
| 01、WA22J7TK1（6+PE male cable connector with short back shell, solder termination） |
| 02、WA22J7TE1（6+PE male cable connector, solder termination） |
| 03、WA22J7TL1 （6+PE male cable connector with angled back shell, solder termination） |
| 04、WA22K7TL1（6+PE female cable connector with angled back shell, solder termination） |
| 05、WA22K7TK1（6+PE female cable connector with short back shell, solder termination） |
| 06、WA22K7ZE1（6+PE female cable connector, solder termination） |

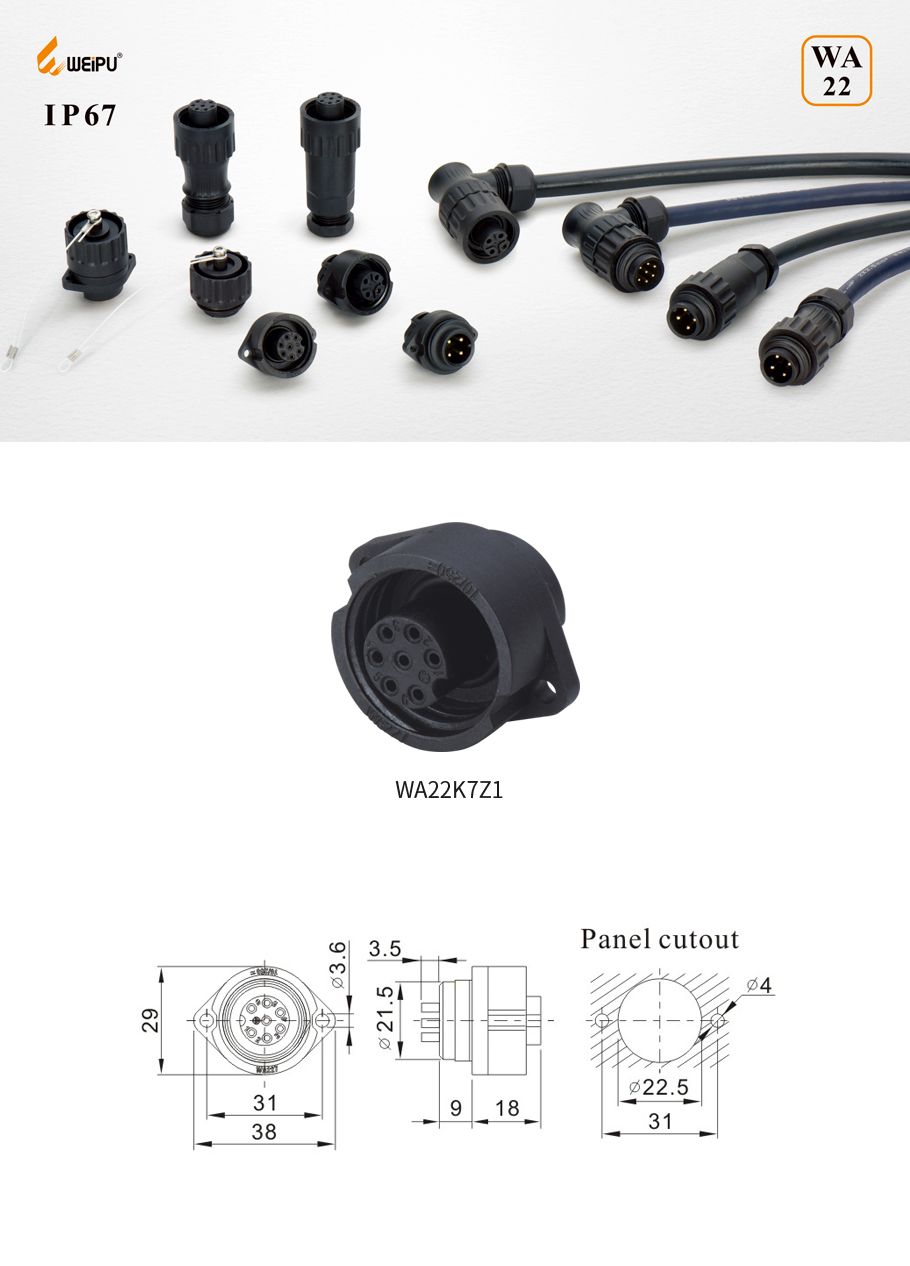

| 07、WA22K7Z1 （6+PE female panel connector, solder termination） |
| 08、WA22J7Z1（6+PE male panel connector, solder termination） |
| 09、WA22 Cap 2 |
| 10、WA22 Cap 1 |
