Threaded, Zinc alloy with chrome plating, PPS

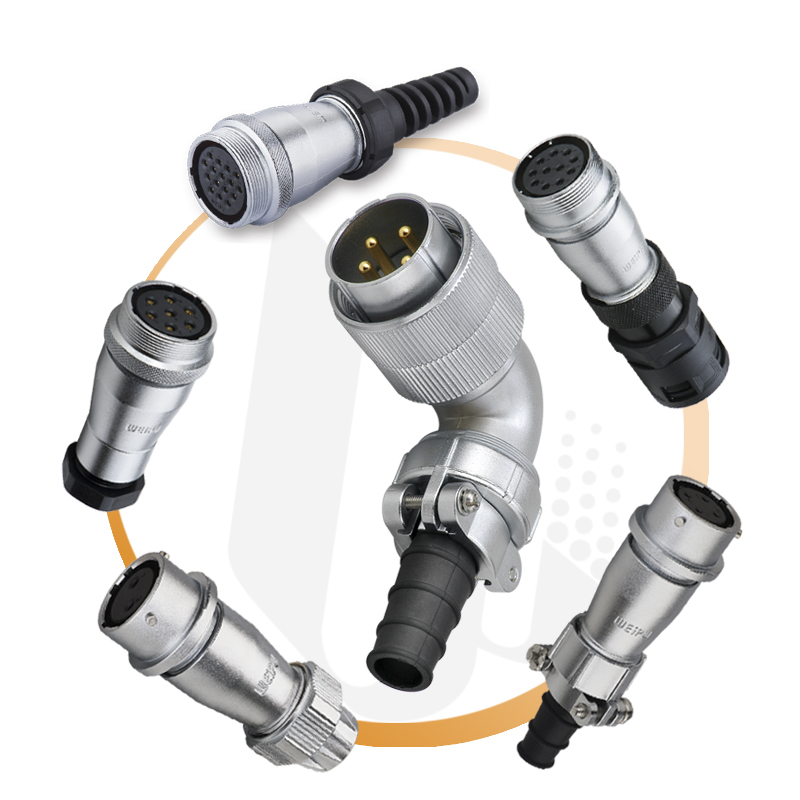

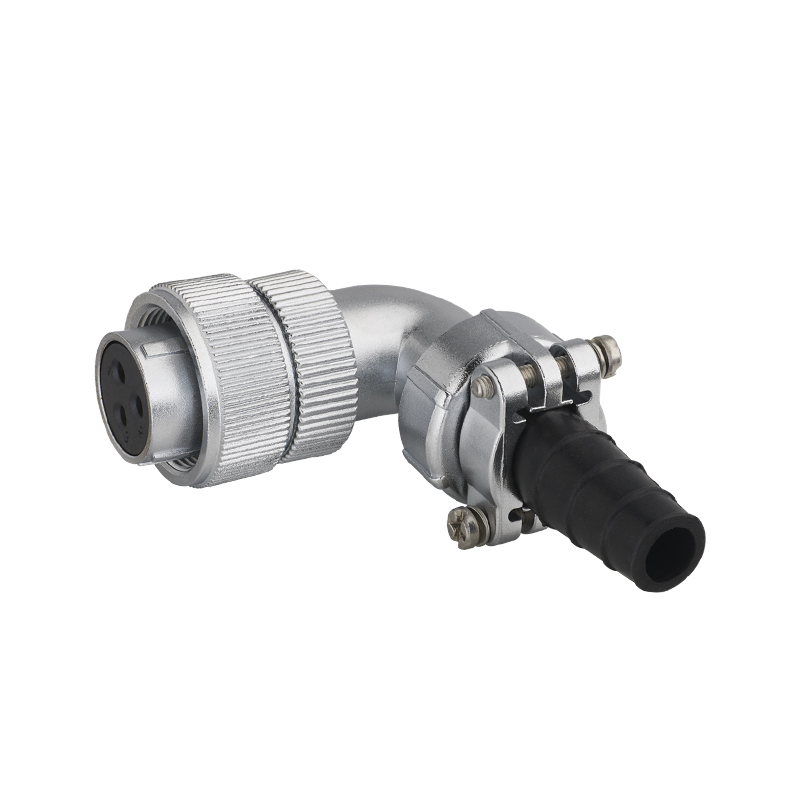

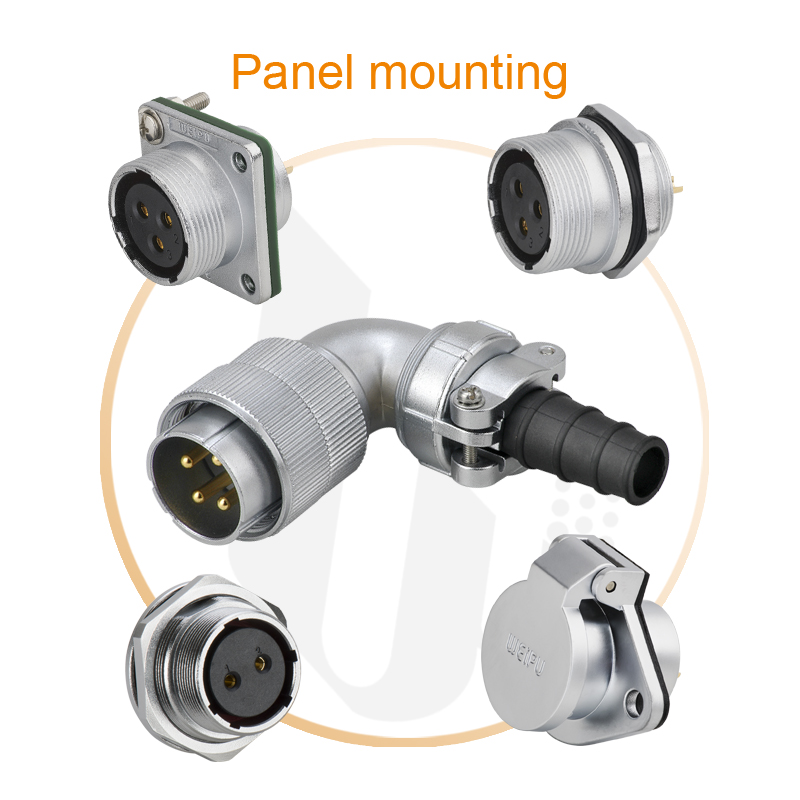

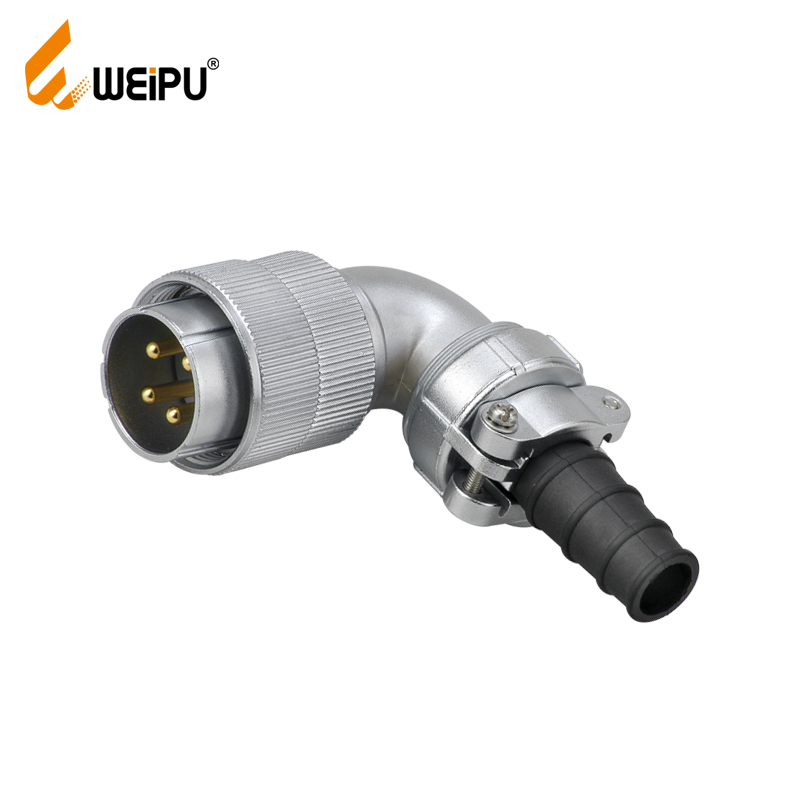

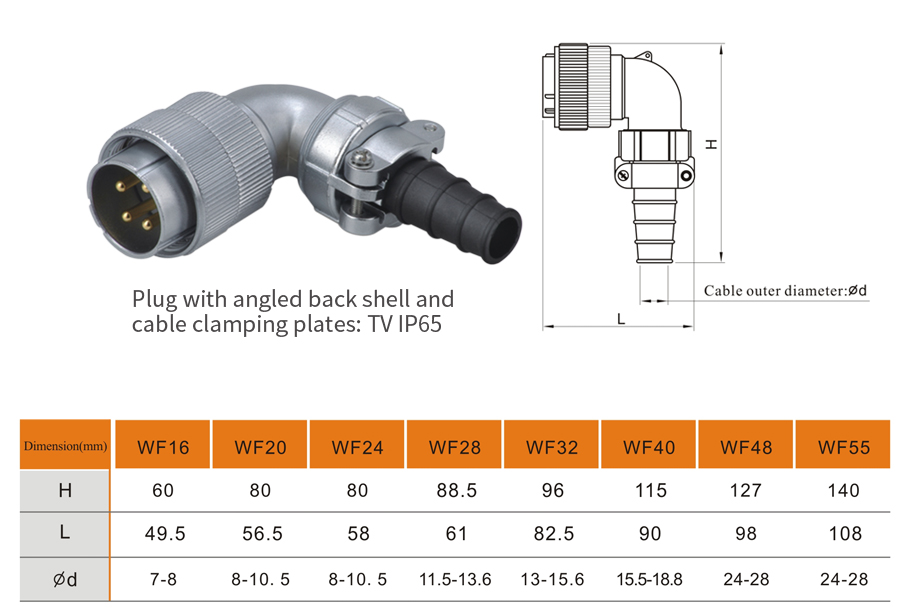

WF-TV Plug with angled back shell and cable clamping plates
Description
| Coupling | Threaded |
| Shell material | Zinc alloy with chrome plating |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder:φ1、φ1.5、φ2.5、φ3.5、φ5,5mm; Screw: φ2.5、φ3、φ3.5mm; Crimp: φ1、φ1.5、φ2.5、φ3.5、φ5.5、φ10mm |
| Mating cycle | 500 |
| Temperature range | -40°C 〜+ 85°C |
| WF Series configuration table(list) | |
| 01、Plug with plastic clamping-nut IP65 | 11、Front-nut-mount receptacle IP67 |
| 02、Plug for plastic-hose IP55 | 12、2-hole flange receptacle with cap IP67 (cap IP44) |
| 03、Plug with metal clamping-nut IP67 | 13、In-line receptacle with plastic clamping-nut IP65 |
| 04、Plug with cable clamping plates IP65 | 14、In-line receptacle for plastic-hose IP55 |
| 05、Plug with strain relief IP67 | 15、In-line receptacle with metal clamping-nut IP67 |
| 06、Plug with angled back shell and metal clamping-nut IP65 | 16、In-line receptacle with cable clamping plates IP65 |
| 07、Plug with angled back shell and cable clamping plates IP65 | 17、n-line receptacle with anti-bending sleeve IP67 |
| 08、Plug with angled back shell for plastic-hose IP55 | |
| 09、Square flange receptacle IP67 | |
| 10、Round flange receptacle IP67 | |
Solder contact spec
Crimp contact spec
