Threaded, Zinc alloy with chrome plating, PPS

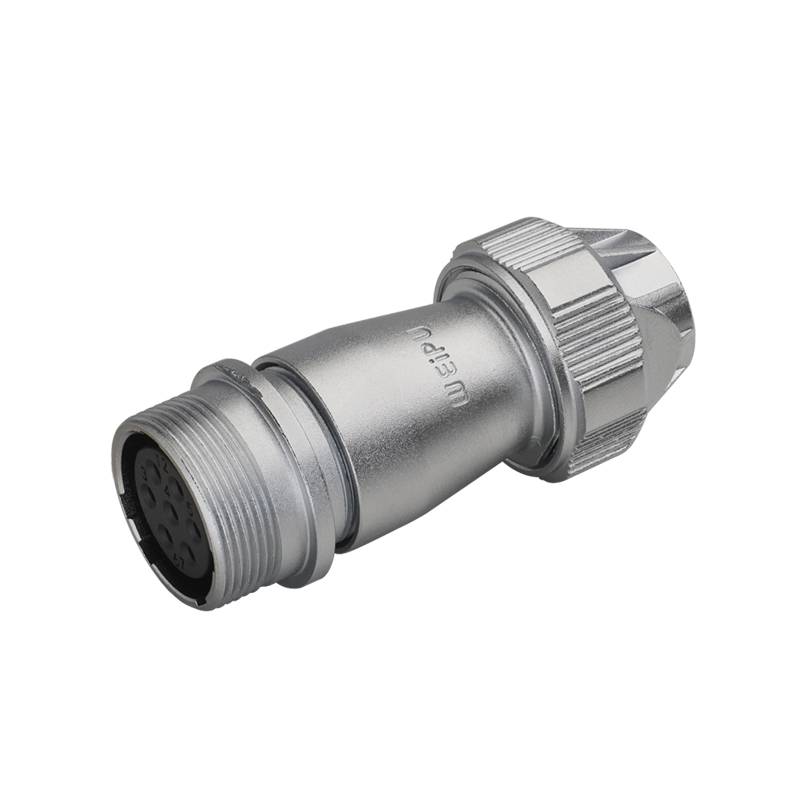

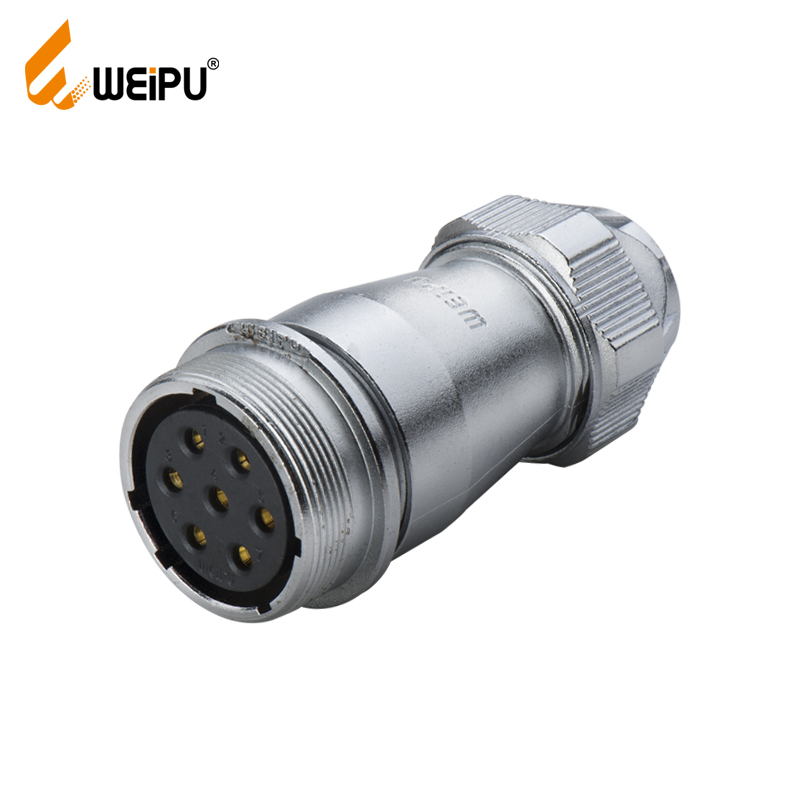

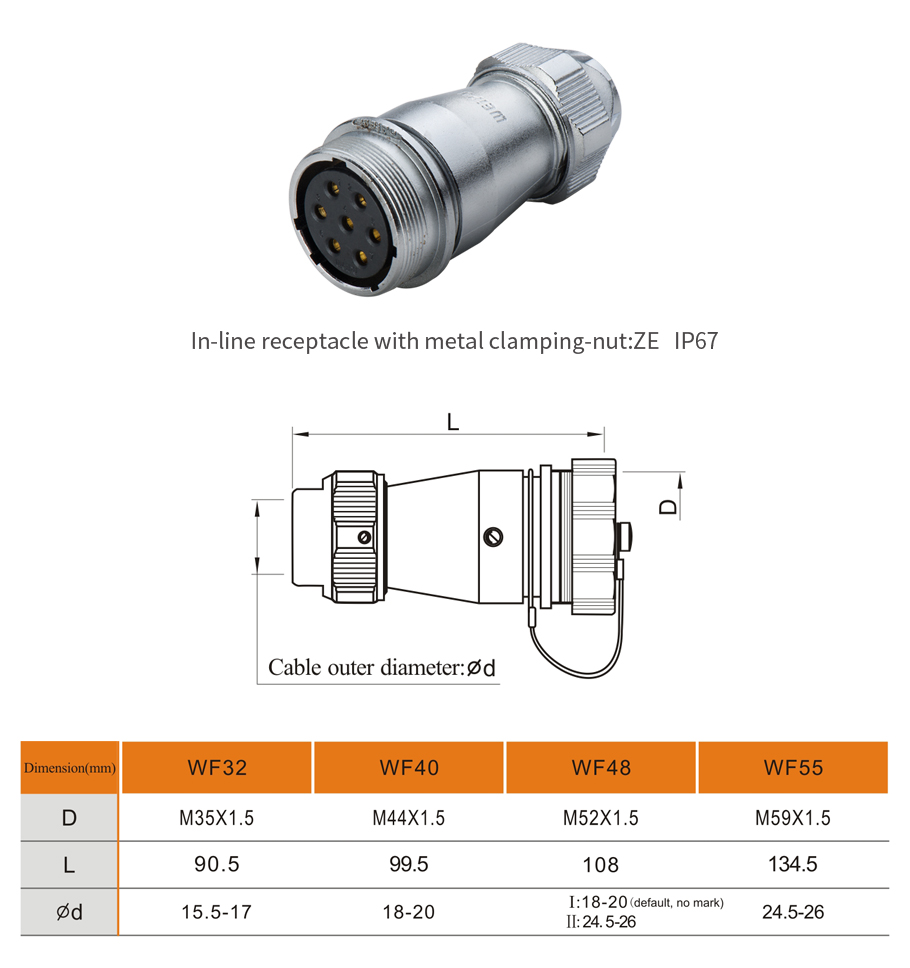

WF-ZE Series In-line receptacle with metal clamping-nut IP67
Description
| Coupling | Threaded |
| Shell material | Zinc alloy with chrome plating |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder:φ1、φ1.5、φ2.5、φ3.5、φ5,5mm; Screw: φ2.5、φ3、φ3.5mm; Crimp: φ1、φ1.5、φ2.5、φ3.5、φ5.5、φ10mm |
| Mating cycle | 500 |
| Temperature range | -40°C 〜+ 85°C |

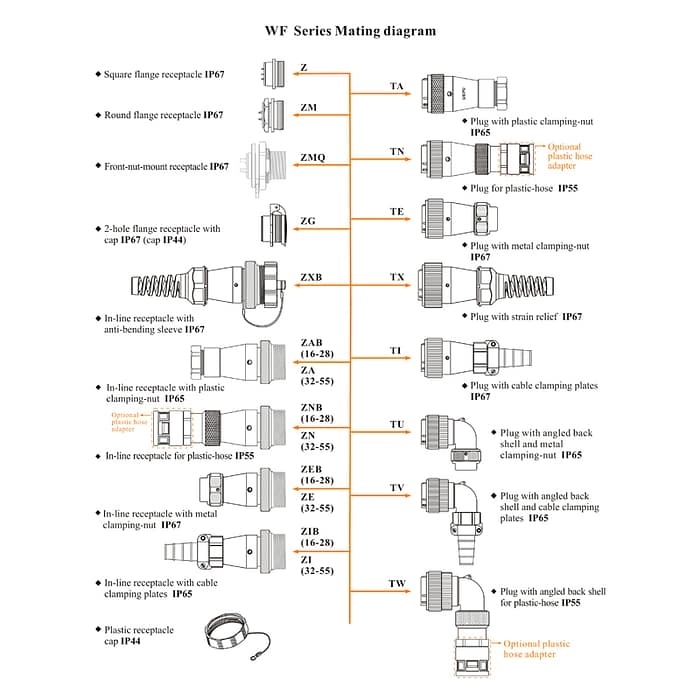

| WF Series configuration table(list) | |
| 01、Plug with plastic clamping-nut IP65 | 11、Front-nut-mount receptacle IP67 |
| 02、Plug for plastic-hose IP55 | 12、2-hole flange receptacle with cap IP67 (cap IP44) |
| 03、Plug with metal clamping-nut IP67 | 13、In-line receptacle with plastic clamping-nut IP65 |
| 04、Plug with cable clamping plates IP65 | 14、In-line receptacle for plastic-hose IP55 |
| 05、Plug with strain relief IP67 | 15、In-line receptacle with metal clamping-nut IP67 |
| 06、Plug with angled back shell and metal clamping-nut IP65 | 16、In-line receptacle with cable clamping plates IP65 |
| 07、Plug with angled back shell and cable clamping plates IP65 | 17、n-line receptacle with anti-bending sleeve IP67 |
| 08、Plug with angled back shell for plastic-hose IP55 | |
| 09、Square flange receptacle IP67 | |
| 10、Round flange receptacle IP67 | |
Solder contact spec
Crimp contact spec
Unveiling Weipu WF Series: Your Secure Connection in Harsh Environments
In the world of industrial connectivity, reliability is paramount. Introducing the Weipu WF Series – a line of connectors designed to excel in challenging conditions, ensuring your connections remain secure and uninterrupted.
Key Features of Weipu WF Series:
Waterproof Excellence: The Weipu WF Series is engineered to thrive in wet and demanding environments. With an impressive IP65 waterproof rating, these connectors provide a robust shield against moisture and ensure consistent performance.
Thread Locking Mechanism: Security is at the core of the WF Series. The connectors feature a thread locking mechanism, adding an extra layer of stability to your connections. No need to worry about vibrations or environmental stress compromising your link.
Versatility in Applications: The WF Series is not just about durability; it’s about adaptability. These connectors find their place in a myriad of applications, from marine ventures to medical equipment and automation processes.
How Weipu WF Series Enhances Your Connectivity:
Secure and Reliable Connections: The thread locking mechanism, coupled with the IP65 waterproof rating, ensures your connections stay secure and reliable, even in the toughest conditions.
Adaptable in Various Industries: Whether you’re navigating the challenges of marine environments or seeking connectivity solutions in automation, the WF Series is your versatile companion.
Durable in Every Aspect: The WF Series doesn’t just meet industry standards; it exceeds them. Expect durability that goes beyond expectations, providing longevity and stability.
Unlocking Customized Solutions:
At Weipu, we understand that every application is unique. That’s why the WF Series comes with the option for customized solutions. Tailor these connectors to your specific needs, ensuring they seamlessly integrate into your projects. For a deeper understanding of the diverse models within the WF Series, please click here for details.
Trusted by Industry Leaders:
For over two decades, Weipu has been a trusted name in industrial connectors. The WF Series continues this legacy, contributing to large-scale projects with precision and excellence.
Explore the world of secure and waterproof connectivity with the Weipu WF Series. For more details and to discover how these connectors can elevate your projects, visit Weipu WF Series.
